Texas Instruments LM3658SD-B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 4.95 | Dhs. 4.95 |
| 15+ | Dhs. 4.79 | Dhs. 71.85 |
| 25+ | Dhs. 4.69 | Dhs. 117.25 |
| 50+ | Dhs. 4.43 | Dhs. 221.50 |
| 100+ | Dhs. 3.91 | Dhs. 391.00 |
| N+ | Dhs. 0.78 | Price Inquiry |
Request Quote / Inquiry
LM3658SD-B - Single-Cell Li-Ion Battery Charger IC
The LM3658SD-B from Texas Instruments is a high-performance, single-cell lithium-ion/polymer battery charger IC designed for portable applications. This compact 10-WSON package solution delivers up to 1A charging current with integrated USB interface, making it ideal for smartphones, tablets, portable medical devices, and other battery-powered electronics.
Key Features & Benefits
- High Charging Efficiency: Programmable constant current charging up to 1A for fast, reliable battery charging
- Comprehensive Protection: Built-in over-current and over-temperature fault protection ensures safe operation
- USB-Compatible Interface: Direct USB connectivity simplifies design integration
- Wide Operating Range: Functions reliably from -40°C to 85°C in demanding environments

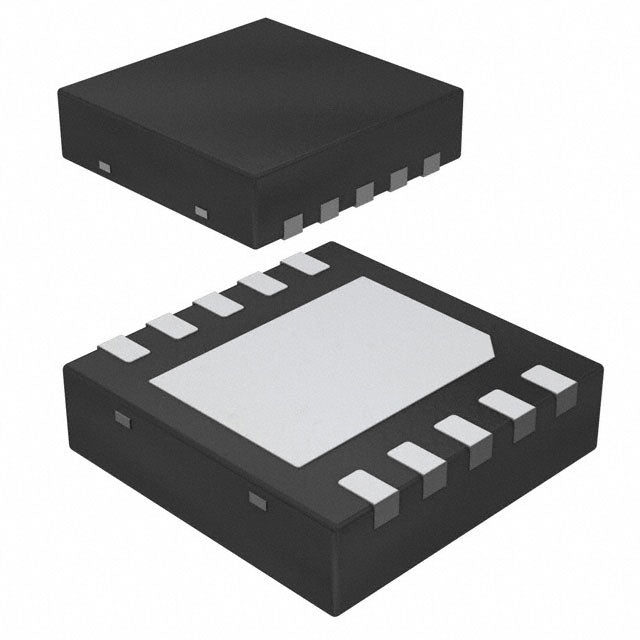

- Compact Footprint: 10-WFDFN/10-WSON (3x3mm) surface mount package saves valuable PCB space
- Precision Voltage Regulation: 4.2V battery pack voltage with 6V maximum supply voltage
Typical Applications
The LM3658SD-B is perfectly suited for portable consumer electronics, medical devices, industrial handhelds, IoT sensors, wearable technology, and any application requiring reliable single-cell Li-Ion or Li-Polymer battery charging with USB connectivity.
Why Choose HQICKEY?
At HQICKEY, we specialize in providing authentic semiconductor components with guaranteed quality and traceability. Our extensive inventory, competitive pricing, and fast global shipping make us your trusted partner for embedded and industrial component sourcing.
Related Products & Resources
Looking for more power management solutions? Explore our complete range of Battery Chargers for various battery chemistries and applications. Visit our homepage to discover our full catalog of semiconductors, or check out our technical blog for the latest industry insights, application notes, and design tips.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Current, Over Temperature |
| Charge Current - Max | 1A |
| Battery Pack Voltage | 4.2V |
| Voltage - Supply (Max) | 6V |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (3x3) |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
