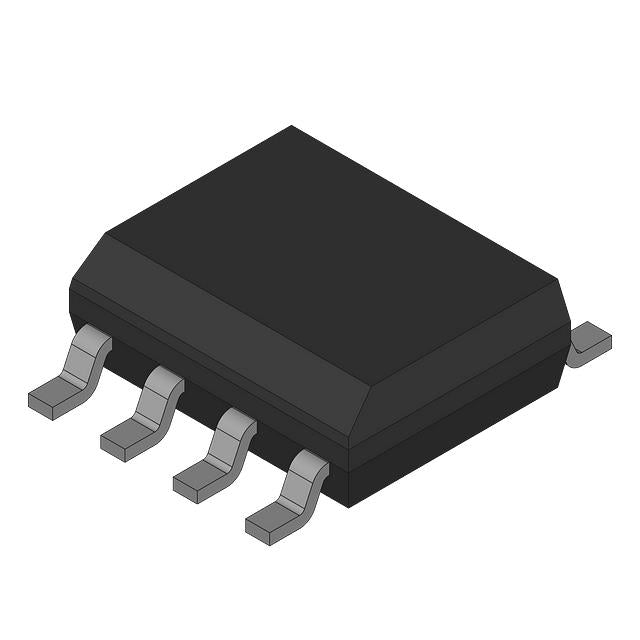

National Semiconductor LM4876M
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.57 | Dhs. 1.57 |
| 15+ | Dhs. 1.52 | Dhs. 22.80 |
| 25+ | Dhs. 1.49 | Dhs. 37.25 |
| 50+ | Dhs. 1.40 | Dhs. 70.00 |
| 100+ | Dhs. 1.24 | Dhs. 124.00 |
| N+ | Dhs. 0.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | Boomer® |
| Packaging | Bulk | |
| Part Status | Active |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 1.5W x 1 @ 8Ohm |
| Voltage - Supply | 2V ~ 5.5V |
| Features | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Supplier Device Package | 8-SOIC |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
The LM4876M is a mono Class AB audio amplifier designed for low-voltage applications. Delivering up to 1.5W into an 8Ω load, it operates from 2V to 5.5V, making it ideal for battery-powered portable devices. Its surface-mount 8-SOIC package enables compact designs in Bluetooth speakers, radios, intercoms, and alarm systems. With built-in thermal protection and low quiescent current, the LM4876M offers reliable, high-quality audio amplification for space-constrained projects.
- High Output Power: Delivers 1.5W into 8Ω, ensuring loud and clear audio for portable speakers.
- Wide Voltage Range: Operates from 2V to 5.5V, compatible with single-cell batteries and USB power.
- Compact Package: 8-SOIC surface-mount design saves board space in dense layouts.
- Thermal Protection: Built-in shutdown and thermal protection enhance reliability in demanding conditions.
- Low Distortion: Class AB architecture provides low total harmonic distortion for clean sound reproduction.
Portable Bluetooth Speaker
The LM4876M's 1.5W output into 8Ω and 2V-5.5V supply range make it ideal for compact, battery-powered Bluetooth speakers requiring clear audio with minimal power consumption.
AM/FM Radio
Its low quiescent current and wide voltage range allow the LM4876M to drive small speakers in portable AM/FM radios, ensuring efficient operation from a single Li-ion cell.
Intercom System
With its mono output and thermal protection, the LM4876M is well-suited for intercoms where reliable, moderate-power audio amplification is needed in a compact footprint.
Alarm Driver
The LM4876M can drive piezo buzzers or small speakers in alarm systems, providing sufficient volume while operating from low-voltage backup batteries.
DIY Audio Projects
Hobbyists can use the LM4876M in simple audio amplifier circuits due to its easy-to-use 8-SOIC package, minimal external components, and stable performance over temperature.
Line Driver for Headphones
Although mono, the LM4876M can serve as a line driver for single-channel audio signals in test equipment or signal distribution, thanks to its low distortion and wide bandwidth.
| Model | Package | Voltage Range | Output Power (Typical) |
|---|---|---|---|
| LM4876M | 8-SOIC | 2V ~ 5.5V | 1.5W x 1 @ 8Ω |
| LM4674TLX | 16-DSBGA | 2.4V ~ 5.5V | 2.5W x 2 @ 4Ω |
| LM4809LDX/NOPB | 8-WSON | 2V ~ 5.5V | 105mW x 2 @ 16Ω |
| MAX9718GEBL+TG45 | 9-UCSP | 2.7V ~ 5.5V | 1.4W x 1 @ 4Ω |
- Q: What is the typical output power of the LM4876M?
- A: The LM4876M delivers 1.5W into an 8Ω load at 5V supply.
- Q: What is the supply voltage range?
- A: It operates from 2V to 5.5V, making it ideal for battery-powered devices.
- Q: Is the LM4876M a mono or stereo amplifier?
- A: It is a mono (1-channel) Class AB amplifier.
- Q: What package is the LM4876M available in?
- A: It comes in an 8-SOIC surface-mount package.
- Q: Can the LM4876M be used in portable speakers?
- A: Yes, its low voltage operation and high output power make it suitable for portable Bluetooth speakers and radios.
