Texas Instruments LM5045SQ/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 19.10 | Dhs. 19.10 |
| 15+ | Dhs. 18.51 | Dhs. 277.65 |
| 25+ | Dhs. 18.11 | Dhs. 452.75 |
| 50+ | Dhs. 17.10 | Dhs. 855.00 |
| 100+ | Dhs. 15.09 | Dhs. 1,509.00 |
| N+ | Dhs. 3.02 | Price Inquiry |
Request Quote / Inquiry
Texas Instruments LM5045SQ/NOPB Full-Bridge Switching Controller
The LM5045SQ/NOPB is a high-performance full-bridge switching controller from Texas Instruments, designed for isolated DC-DC converter applications requiring wide input voltage range and high switching frequencies.
Key Features & Benefits
- Wide Input Voltage Range: Operates from 14V to 100V, ideal for industrial and automotive applications
- High Switching Frequency: Supports frequencies up to 2MHz for compact transformer design
- Isolated Output: Full electrical isolation for safety-critical applications
- Comprehensive Protection: Built-in current limiting, over-temperature, and over-voltage protection
- Advanced Control Features: Frequency control, soft start, and synchronization capabilities

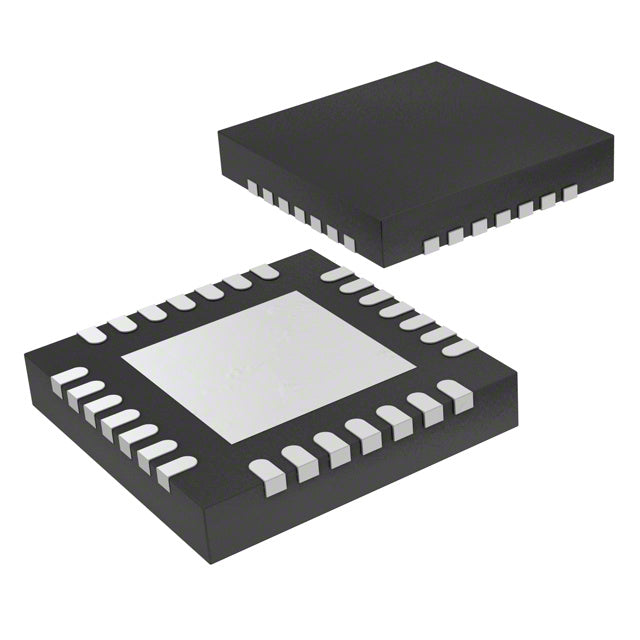

- Compact Surface Mount Package: 28-WFQFN (5x5mm) with exposed pad for superior thermal performance
- Wide Operating Temperature: -40°C to 125°C junction temperature for harsh environments
- RoHS Compliant: Environmentally friendly, lead-free construction
Applications
Perfect for telecom power supplies, industrial automation, automotive systems, and any application requiring reliable isolated DC-DC conversion with high efficiency and robust protection.
Authorized distributor of genuine Texas Instruments components with full traceability and quality assurance.
Related Products & Resources
Explore our complete range of AC DC Converters, Offline Switchers for more power management solutions.
Visit HQICKEY to browse our full catalog of genuine semiconductors and programmable logic components.
Stay updated with the latest industry insights and product announcements on our News & Updates Blog.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Full-Bridge |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 14V ~ 100V |
| Duty Cycle | - |
| Frequency - Switching | Up to 2MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control, Soft Start, Sync |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-WQFN (5x5) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
