Texas Instruments LM5045SQX/NOPB
Regular price
Dhs. 16.22
Regular price
Dhs. 17.08
Sale price
Dhs. 16.22
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 16.22 | Dhs. 16.22 |
| 15+ | Dhs. 15.71 | Dhs. 235.65 |
| 25+ | Dhs. 15.37 | Dhs. 384.25 |
| 50+ | Dhs. 14.52 | Dhs. 726.00 |
| 100+ | Dhs. 12.81 | Dhs. 1,281.00 |
| N+ | Dhs. 2.56 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
Texas Instruments LM5045SQX/NOPB Full-Bridge PWM Controller
The LM5045SQX/NOPB is a high-performance isolated full-bridge PWM controller from Texas Instruments, designed for demanding power conversion applications requiring wide input voltage range and high switching frequencies.
Key Features
- Wide Input Voltage Range: 14V to 100V supply voltage capability
- High Switching Frequency: Up to 2MHz for compact design solutions
- Comprehensive Protection: Current limiting, over-temperature, and over-voltage fault protection
- Advanced Control: Frequency control, soft start, and synchronization features
- Industrial Temperature Range: -40°C to 125°C (TJ) operation

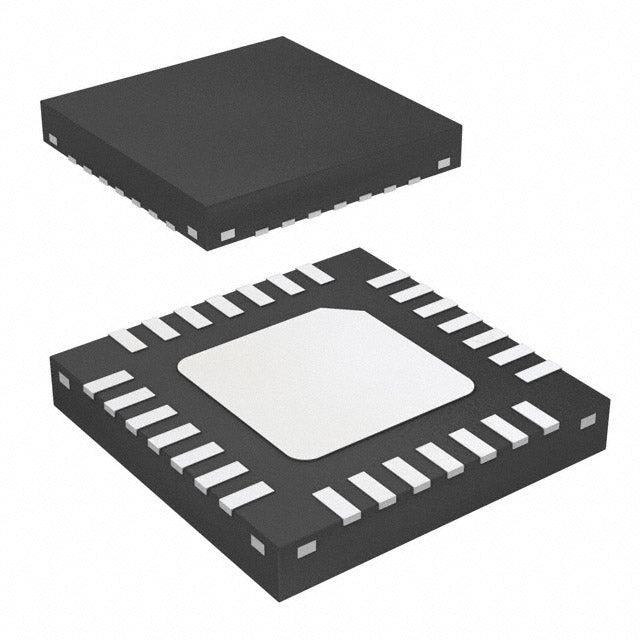

- Compact Surface Mount Package: 28-WQFN (5x5mm) with exposed pad for enhanced thermal performance
- RoHS Compliant: Environmentally friendly lead-free construction
Applications
Ideal for industrial power supplies, telecommunications equipment, automotive systems, and high-reliability applications requiring isolated DC-DC conversion with robust fault protection and precise control.
Availability: Available in Cut Tape (CT) and Tape & Reel (TR) packaging options for prototype and production requirements.
Related Resources
- AC DC Converters, Offline Switchers - Explore our complete range of AC/DC converter and offline switcher solutions
- HQICKEY Home - Discover our full catalog of premium electronic components for aerospace, automotive, industrial, medical, and telecommunications applications
- HQICKEY Technical Blog - Stay updated with the latest industry insights, technical articles, and product announcements
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Full-Bridge |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 14V ~ 100V |
| Duty Cycle | - |
| Frequency - Switching | Up to 2MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | Frequency Control, Soft Start, Sync |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-WQFN (5x5) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
