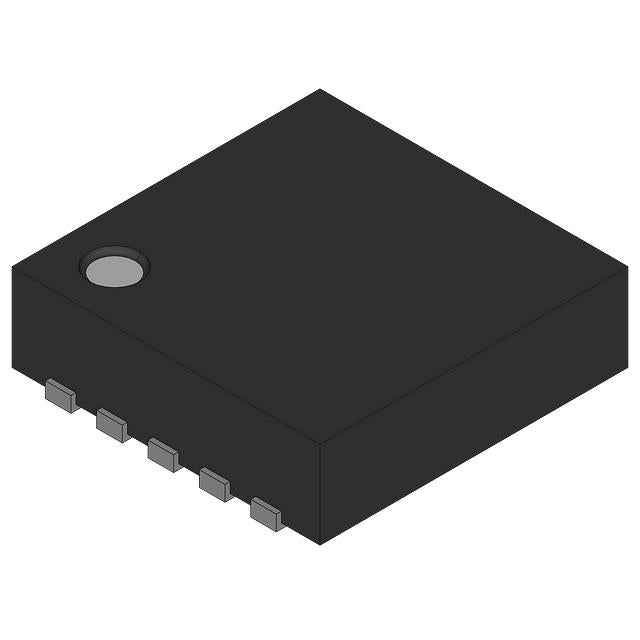

National Semiconductor LM5100ASD
Regular price
$1.79
Regular price
$1.88
Sale price
$1.79
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.79 | $1.79 |
| 15+ | $1.73 | $25.95 |
| 25+ | $1.69 | $42.25 |
| 50+ | $1.60 | $80.00 |
| 100+ | $1.41 | $141.00 |
| N+ | $0.28 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | MOSFET (N-Channel) |
| Voltage - Supply | 9V ~ 14V |
| Logic Voltage - VIL, VIH | 2.3V, - |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 430ns, 260ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-WDFN Exposed Pad |
| Supplier Device Package | 10-WSON (4x4) |
LM5100ASD.pdf
×
