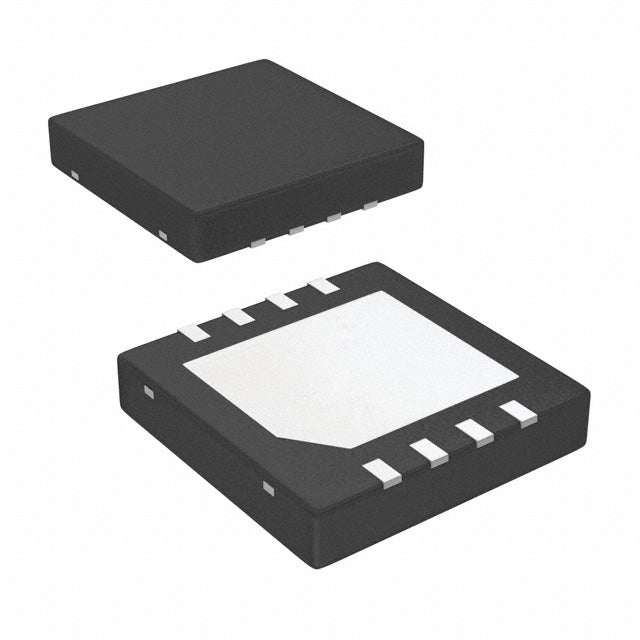

Texas Instruments LM5107SDX
Regular price
$1.10
Regular price
$1.16
Sale price
$1.10
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.10 | $1.10 |
| 15+ | $1.07 | $16.05 |
| 25+ | $1.04 | $26.00 |
| 50+ | $0.99 | $49.50 |
| 100+ | $0.87 | $87.00 |
| N+ | $0.17 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | MOSFET (N-Channel) |
| Voltage - Supply | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1.3A, 1.4A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 118 V |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) |
LM5107SDX.pdf
×
