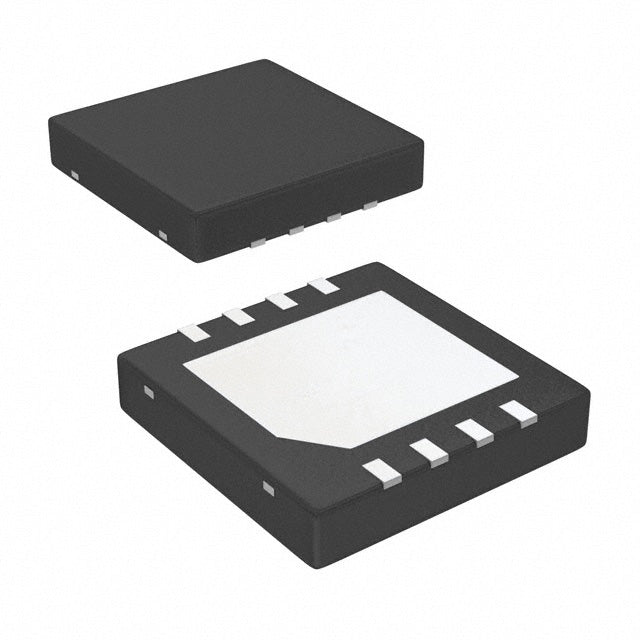

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
LM5109BSDX/NOPB
LM5109BSDX/NOPB
Regular price
Dhs. 4.12
Regular price
Dhs. 4.35
Sale price
Dhs. 4.12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 4.12 AED | Dhs. 4.12 AED |
| 15+ | Dhs. 4.00 AED | Dhs. 60.00 AED |
| 25+ | Dhs. 3.92 AED | Dhs. 98.00 AED |
| 50+ | Dhs. 3.70 AED | Dhs. 185.00 AED |
| 100+ | Dhs. 3.26 AED | Dhs. 326.00 AED |
| N+ | Dhs. 0.65 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | MOSFET (N-Channel) |
| Voltage - Supply | 8V ~ 14V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 1A, 1A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 108 V |
| Rise / Fall Time (Typ) | 15ns, 15ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) |
| ROHS |  |
Datasheets:
LM5109BSDX/NOPB
.pdf
×
