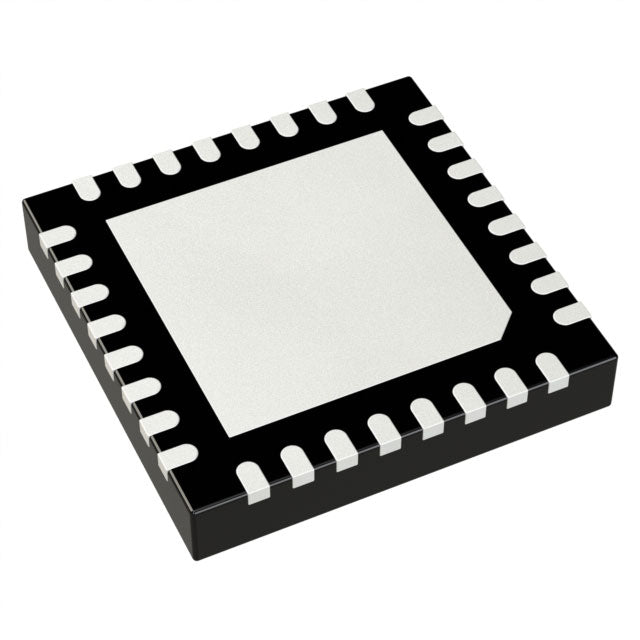

Texas Instruments LM5125QRHBRQ1
Regular price
$6.40
Regular price
$6.74
Sale price
$6.40
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.40 | $6.40 |
| 15+ | $6.20 | $93.00 |
| 25+ | $6.07 | $151.75 |
| 50+ | $5.73 | $286.50 |
| 100+ | $5.06 | $506.00 |
| N+ | $1.01 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Type | Transistor Driver |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Number of Outputs | 1 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 42V |
| Frequency - Switching | 100kHz ~ 2.2MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Dead Time Control, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| ROHS |  |
LM5125QRHBRQ1.pdf
×
