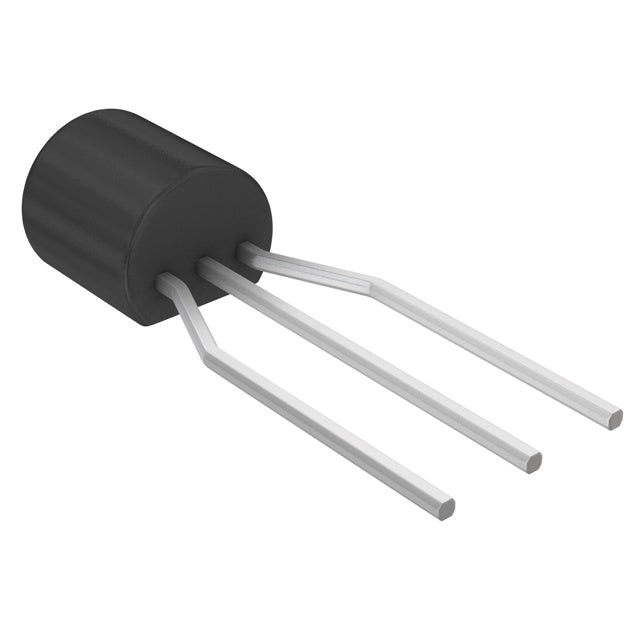

Texas Instruments LM78L05ACZ/LFT1
Regular price
$0.48
Regular price
$0.50
Sale price
$0.48
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.48 | $0.48 |
| 15+ | $0.46 | $6.90 |
| 25+ | $0.45 | $11.25 |
| 50+ | $0.43 | $21.50 |
| 100+ | $0.38 | $38.00 |
| N+ | $0.08 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 3 mA |
| Current - Supply (Max) | - |
| PSRR | 62dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92-3 |
| ROHS |  |
The LM78L05ACZ/LFT1 from Texas Instruments is a classic fixed 5V linear regulator with 100mA output capability. Featuring a low 3mA quiescent current and 62dB PSRR at 120Hz, it delivers clean, stable power for a variety of low-current applications. The TO-92-3 package is ideal for through-hole PCB designs.
- Proven Reliability: Industry-standard 78L05 architecture trusted for decades.
- Clean Output: 62dB PSRR filters mains ripple effectively.
- Simple Integration: TO-92-3 package is easy to use in through-hole designs.
- Cost-Effective: Economical solution for basic 5V regulation needs.
Simple Power Supplies
Provides a stable 5V rail for low-power circuits in hobbyist and educational projects.
Microcontroller Biasing
100mA output is sufficient for small MCUs and peripheral ICs.
Analog Reference
62dB PSRR at 120Hz ensures clean power for analog signal conditioning.
Legacy Systems
Drop-in replacement for older 78L05 regulators in existing designs.
Appliance Control Boards
Reliable 5V for control logic in washing machines and microwaves.
Sensor Interfaces
Stable voltage for analog sensors in industrial monitoring.
- Q: What is the output voltage?
- A: Fixed 5V output.
- Q: What is the maximum output current?
- A: 100mA.
- Q: What is the input voltage range?
- A: Not specified in provided data.
- Q: What is the quiescent current?
- A: 3mA.
- Q: What is the PSRR?
- A: 62dB at 120Hz.
- Q: What package is available?
- A: TO-92-3.
Base Product Number ：
LM78L05
LM78L05ACZ/LFT1.pdf
