Texas Instruments LM78L62ACZ/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.72 | $0.72 |
| 15+ | $0.70 | $10.50 |
| 25+ | $0.68 | $17.00 |
| 50+ | $0.65 | $32.50 |
| 100+ | $0.57 | $57.00 |
| N+ | $0.11 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 6.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 2 mA |
| Current - Supply (Max) | - |
| PSRR | 46dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 |
| ROHS |  |

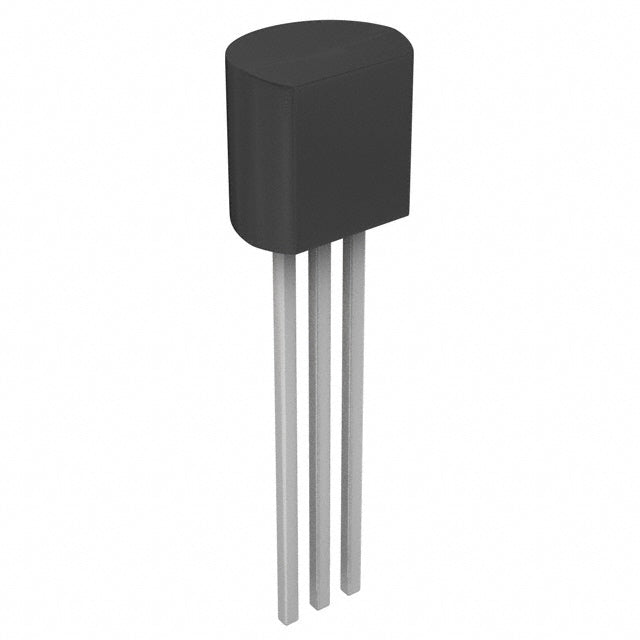

The LM78L62ACZ/NOPB from Texas Instruments is a fixed 6.2V positive voltage regulator in a compact TO-92-3 package. It is designed for low-current applications, delivering up to 100mA. With a quiescent current of only 2mA and 46dB ripple rejection at 120Hz, it provides a stable and efficient power solution for a variety of low-power circuits. Its simple three-pin interface makes it easy to integrate into any design.
- Simple Integration: Three-pin TO-92 package is easy to use and requires minimal external components.
- Low Power Consumption: 2mA quiescent current is suitable for battery-operated and energy-efficient designs.
- Stable Output: Provides a fixed 6.2V rail with 46dB ripple rejection for reliable operation.
- Cost-Effective: Ideal for high-volume, low-power applications where cost is a key factor.
Reference Voltage Source
The 6.2V output can serve as a stable reference for analog-to-digital converters and comparator circuits.
Low-Power Logic Circuits
Provides a regulated 6.2V supply for legacy TTL or CMOS logic families that require higher voltages.
Bias Supply for Op-Amps
Can be used to create a clean bias rail for operational amplifiers in sensor conditioning circuits.
Small Appliances
Ideal for simple consumer appliances with low-power control electronics, offering a cost-effective solution.
Instrumentation
Provides a stable supply for analog meters and measurement bridges, with 46dB ripple rejection at 120Hz.
Hobbyist Projects
Easy-to-use TO-92 package makes it perfect for breadboarding and DIY electronics projects.
- Q: What is the output voltage of the LM78L62ACZ/NOPB?
- A: The output voltage is fixed at 6.2V.
- Q: What is the maximum output current?
- A: It can deliver up to 100mA of output current.
- Q: What is the input voltage range?
- A: The input voltage is 6.2V (typical), but the full range is not specified in the provided data.
- Q: What is the quiescent current?
- A: The quiescent current is 2mA.
- Q: What is the PSRR?
- A: PSRR is 46dB at 120Hz.
- Q: What package is available?
- A: It comes in a TO-92-3 package.
