TAEJIN LM78M05RS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.80 | $0.80 |
| 15+ | $0.18 | $2.70 |
| 25+ | $0.18 | $4.50 |
| 50+ | $0.17 | $8.50 |
| 100+ | $0.15 | $15.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | TAEJIN |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 2.2V @ 350mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 6 mA |
| Current - Supply (Max) | - |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |

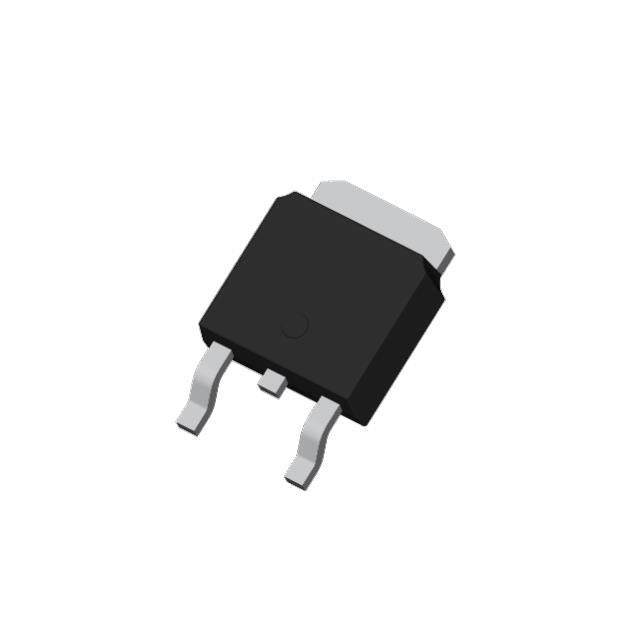

The LM78M05RS is a classic fixed 5V positive voltage regulator from TAEJIN, capable of delivering up to 500mA. Housed in a TO-252-3 (DPAK) package, it offers a simple and reliable solution for creating a stable 5V power rail. With a quiescent current of 6mA and a dropout voltage of 2.2V at 350mA, it is a robust choice for many general-purpose applications.
- Higher Output Current: 500mA capability supports a wider range of loads compared to typical 150mA LDOs.
- Robust Package: TO-252-3 (DPAK) package offers good thermal performance for power dissipation.
- Simple Integration: Fixed 5V output requires minimal external components for basic operation.
- Proven Technology: Based on the industry-standard 78M05 topology, ensuring reliable and predictable performance.
General-Purpose 5V Power Supply
The 500mA output current makes it suitable for powering logic circuits, relays, and small motors in various embedded systems and hobbyist projects.
Industrial Control Panels
Provides a robust 5V rail for PLCs, industrial sensors, and control relays. The TO-252-3 package allows for easy heatsinking in higher current applications.
Audio Equipment Power
Can be used to power analog audio circuits requiring a stable 5V supply, such as preamplifiers and tone control stages.
Test and Measurement Equipment
Ideal for bench power supplies and measurement instruments where a reliable, fixed 5V reference is needed for calibration and testing.
Automotive Aftermarket Electronics
Suitable for powering 5V logic in car alarm systems, dashcams, and other aftermarket accessories, given proper input filtering.
- Q: What is the output voltage of the LM78M05RS?
- A: The fixed output voltage is 5.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 2.2V at 350mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 6 mA.
- Q: What package is available?
- A: It is available in a TO-252-3 (DPAK) package.
