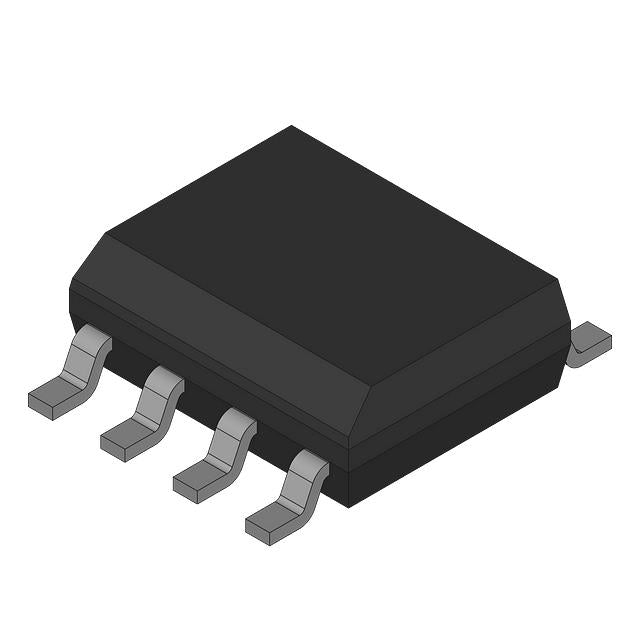

National Semiconductor LM9076BMA-5.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.52 | $6.52 |
| 15+ | $1.50 | $22.50 |
| 25+ | $1.47 | $36.75 |
| 50+ | $1.39 | $69.50 |
| 100+ | $1.22 | $122.00 |
| N+ | $0.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 45 µA |
| Current - Supply (Max) | 4.5 mA |
| PSRR | 60dB (120kHz) |
| Control Features | Enable, Reset |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| ROHS |  |
The LM9076BMA-5.0/NOPB is a fixed 5V low dropout linear regulator delivering up to 150mA of output current. It features an ultra-low quiescent current of 45 µA, making it perfect for battery-powered and always-on applications. The dropout voltage is typically 0.25V at full load, enabling efficient regulation from inputs as low as 5.25V. With a PSRR of 60dB at 120kHz, it effectively suppresses high-frequency noise. The 8-SOIC package offers a compact solution for space-constrained designs.
- Ultra-Low Quiescent Current: 45 µA typical minimizes power consumption in standby mode.
- Low Dropout Voltage: 0.25V at 150mA allows operation from marginally higher supplies.
- High-Frequency Noise Rejection: 60dB PSRR at 120kHz ensures clean output for sensitive electronics.
- Compact 8-SOIC Package: Saves PCB space in portable and wearable devices.
Automotive Body Electronics
Regulate 5V for control modules in power windows and mirrors. The low quiescent current reduces battery drain when the vehicle is off.
Industrial Sensor Nodes
Provide a stable 5V rail for temperature and pressure sensors. The 60dB PSRR at 120kHz ensures clean power in industrial environments with high-frequency noise.
Portable Test Equipment
Power handheld multimeters and oscilloscopes. The low dropout allows operation from a 6V battery pack, maximizing battery life.
Telecom Base Stations
Supply 5V for communication modules. The low quiescent current and high PSRR make it suitable for always-on network equipment.
Medical Wearables
Power continuous glucose monitors and heart rate monitors. The compact 8-SOIC package and low power consumption are ideal for wearable designs.
Consumer Electronics
Regulate 5V for smart speakers and set-top boxes. The low dropout ensures stable operation from USB power sources (5V nominal).
- Q: What is the output voltage of the LM9076BMA-5.0?
- A: The LM9076BMA-5.0 provides a fixed output voltage of 5V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage must be at least 5V plus the dropout voltage (0.25V typical at 150mA), so a minimum of approximately 5.25V is required.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.25V at a 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is extremely low at 45 µA.
- Q: What package is available?
- A: It is available in the 8-SOIC surface-mount package.
