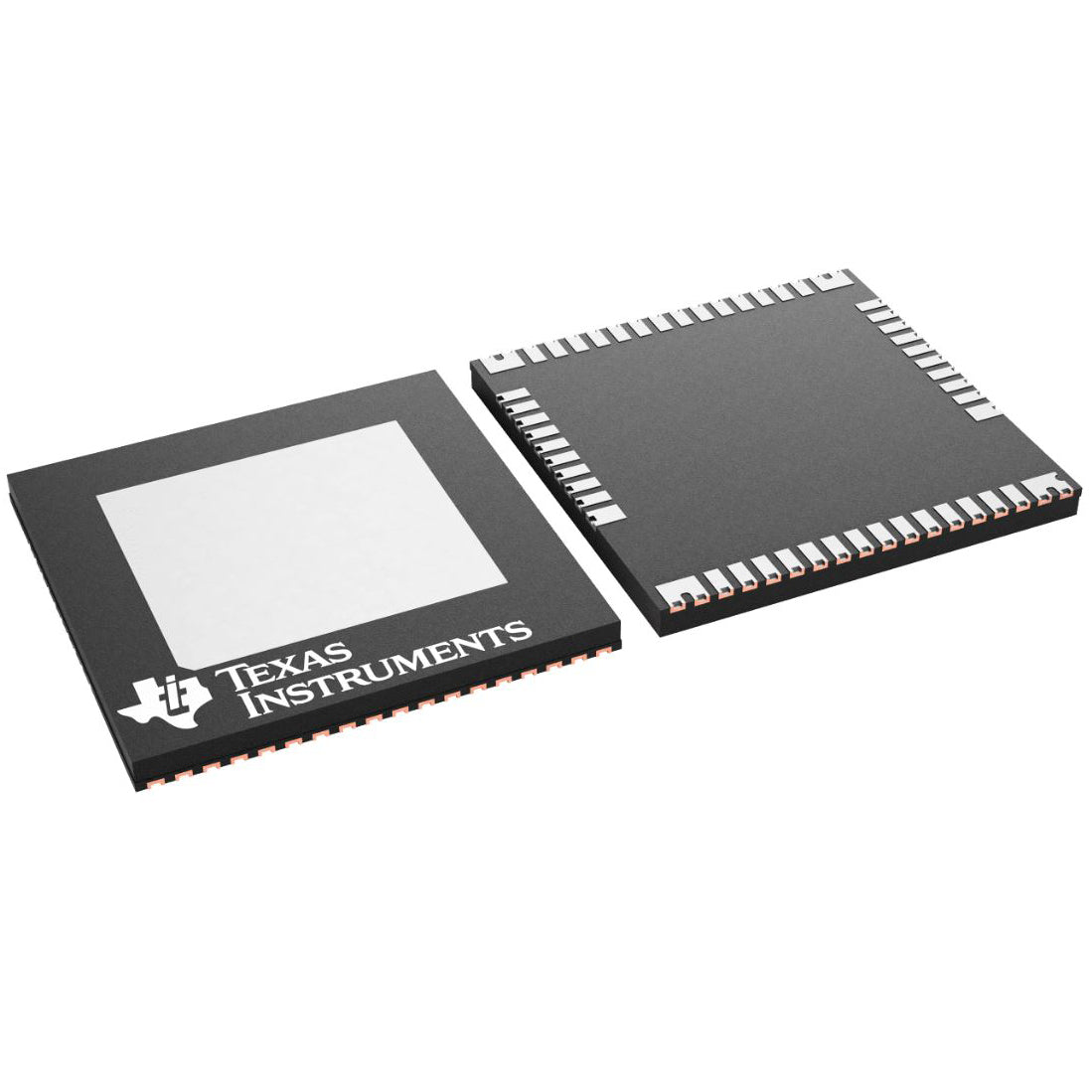

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
LMG3522R050RQSR
LMG3522R050RQSR
Regular price
Dhs. 66.83
Regular price
Dhs. 70.35
Sale price
Dhs. 66.83
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 66.83 AED | Dhs. 66.83 AED |
| 15+ | Dhs. 64.72 AED | Dhs. 970.80 AED |
| 25+ | Dhs. 63.32 AED | Dhs. 1,583.00 AED |
| 50+ | Dhs. 59.80 AED | Dhs. 2,990.00 AED |
| 100+ | Dhs. 52.76 AED | Dhs. 5,276.00 AED |
| N+ | Dhs. 10.55 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | P-Channel |
| Interface | PWM |
| Voltage - Load | 650V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 18V |
| Current - Output (Max) | 32A |
| Rds On (Typ) | 43mOhm |
| nput Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 52-VQFN Exposed Pad |
| Supplier Device Package | 52-VQFN (12x12) |
Datasheets:
LMG3522R050RQSR
.pdf
×
