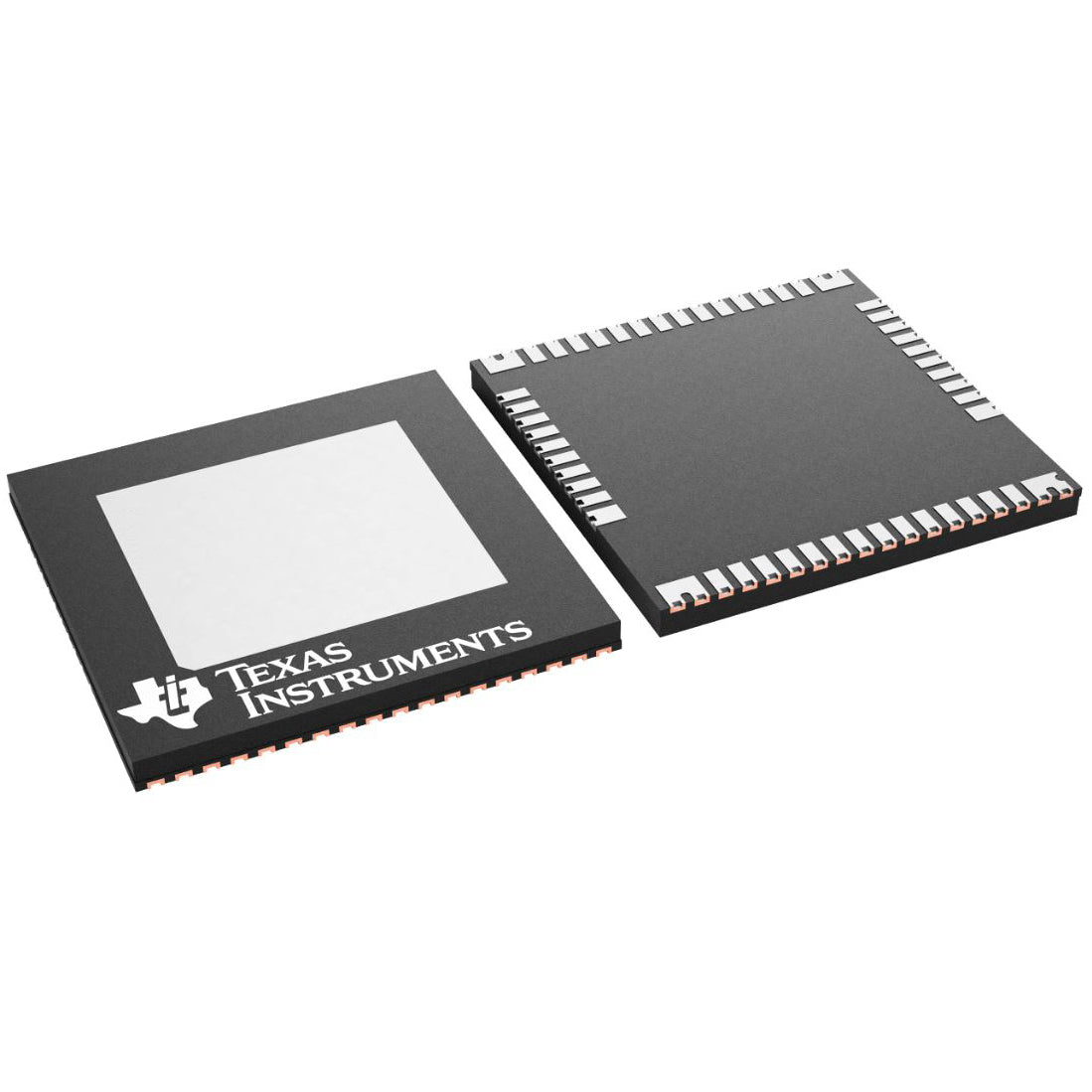

Texas Instruments LMG3522R050RQST
Regular price
$20.58
Regular price
$21.66
Sale price
$20.58
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $20.58 | $20.58 |
| 15+ | $19.93 | $298.95 |
| 25+ | $19.49 | $487.25 |
| 50+ | $18.41 | $920.50 |
| 100+ | $16.25 | $1,625.00 |
| N+ | $3.25 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | Low Side |
| Output Type | P-Channel |
| Interface | PWM |
| Voltage - Load | 650V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 18V |
| Current - Output (Max) | 32A |
| Rds On (Typ) | 43mOhm |
| nput Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 52-VQFN Exposed Pad |
| Supplier Device Package | 52-VQFN (12x12) |
| ROHS |  |
LMG3522R050RQST.pdf
×
