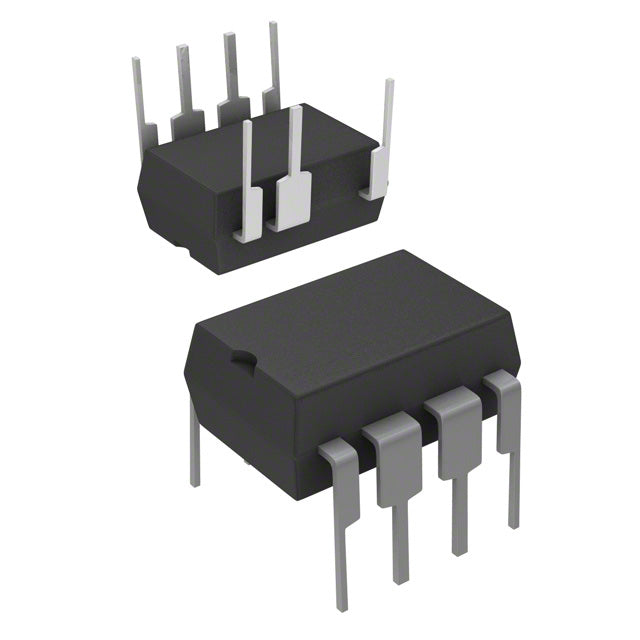

Power Integrations LNK302PN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.65 | $0.65 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.61 | $15.25 |
| 50+ | $0.58 | $29.00 |
| 100+ | $0.51 | $51.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LinkSwitch®-TN |
| Packaging | Tube | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 69% |
| Frequency - Switching | 66kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-B |
| ROHS |  |
The Power Integrations LNK302PN is a non-isolated offline switcher from the LinkSwitch®-TN series supporting Buck, Buck-Boost, and Flyback topologies. It integrates the power switch with a 700V breakdown rating and operates at 66kHz with a 69% maximum duty cycle. Built-in current limiting, open loop, over temperature, and short circuit protection ensure safe operation in an 8-DIP package rated for -40°C to 150°C junction temperatures.
- Multi-topology flexibility (Buck, Buck-Boost, Flyback) in a non-isolated, direct-coupled design.
- Integrated switch and 700V breakdown rating reduce external parts and simplify offline designs.
- 66kHz switching frequency balances efficiency and compact magnetics.
- Protection suite including current limiting, open loop, over temperature, and short circuit improves reliability.
- Wide -40°C to 150°C junction temperature range suits demanding environments.
Non-Isolated Offline Power
The LNK302PN is a non-isolated offline switcher from the LinkSwitch®-TN series supporting Buck, Buck-Boost, and Flyback topologies, suited for direct-coupled low-power supplies.
Appliance Control Boards
With a 700V breakdown rating and integrated switch, it handles offline input while reducing external component count for compact control electronics.
Buck and Buck-Boost Rails
The multi-topology architecture enables step-down or step-up/down non-isolated rails at 66kHz with a 69% maximum duty cycle.
Reliable Fault Handling
Current limiting, open loop, over temperature, and short circuit protection combined with a -40°C to 150°C junction range support dependable operation in demanding environments.
- Q: What topologies does the LNK302PN support?
- A: Buck, Buck-Boost, and Flyback topologies in a non-isolated configuration.
- Q: What is the breakdown voltage?
- A: 700V.
- Q: Does it include an integrated switch?
- A: Yes, the power switch is integrated on-chip.
- Q: What is the switching frequency?
- A: 66kHz.
- Q: What protections are built in?
- A: Current limiting, open loop, over temperature, and short circuit protection.
- Q: What is the operating temperature range?
- A: -40°C to 150°C junction temperature.
