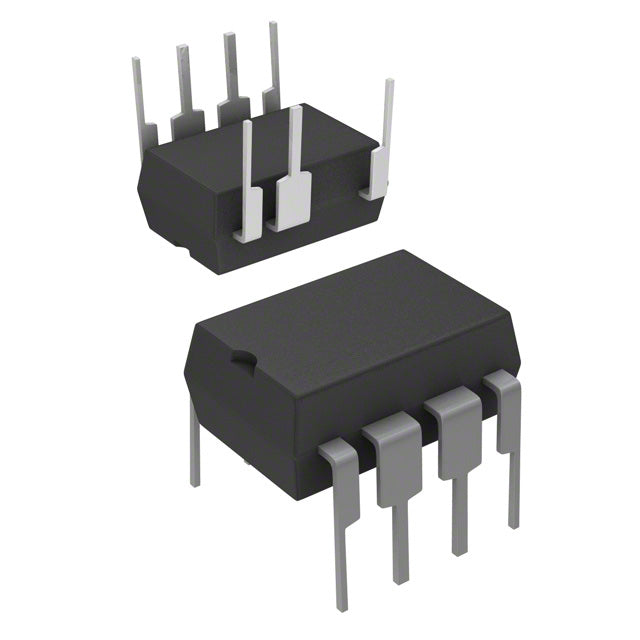

Power Integrations LNK564PN
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.67 | $0.67 |
| 15+ | $0.64 | $9.60 |
| 25+ | $0.63 | $15.75 |
| 50+ | $0.60 | $30.00 |
| 100+ | $0.53 | $53.00 |
| N+ | $0.11 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LinkSwitch®-LP |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 70% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 3 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-PDIP-B |
| ROHS |  |
The LNK564PN from Power Integrations is an offline flyback switcher with an integrated power switch and 700V breakdown rating, delivering up to 3 W. Operating at 100kHz with 70% maximum duty cycle, it provides galvanically isolated output in a 7-lead 8-DIP package. Built-in current limiting, open loop, over temperature, and short circuit protection support dependable low-power AC-DC designs across a -40°C to 150°C junction temperature range.
- Integrated 700V power switch reduces external component count and simplifies isolated flyback design.
- 3 W output at 100kHz switching supports compact low-power AC-DC supplies.
- Comprehensive protection (current limiting, open loop, over temperature, short circuit) improves reliability.
- Wide -40°C to 150°C junction temperature range suits demanding thermal environments.
- 7-lead 8-DIP package enables straightforward through-hole assembly.
Low-Power AC-DC Adapters
The LNK564PN delivers up to 3 W in an isolated flyback topology, making it well suited for compact chargers and adapters where an integrated 700V switch reduces BOM count.
Standby & Auxiliary Supplies
With 100kHz switching and 70% max duty cycle, this LinkSwitch-LP device provides a simple isolated bias supply for appliances and industrial controls.
Home Appliance Control Boards
The integrated switch and built-in current limiting, open loop, over temperature, and short circuit protection support reliable operation in space-constrained appliance electronics.
Industrial Auxiliary Power
Operating across -40°C to 150°C junction temperature, the LNK564PN suits auxiliary rails in equipment exposed to wide thermal swings.
Metering & Sensor Nodes
Galvanic isolation in a flyback configuration helps separate mains from low-voltage measurement circuitry in compact 8-DIP designs.
- Q: What switching topology does the LNK564PN use?
- A: It is a Flyback offline switcher with galvanically isolated output, ideal for low-power AC-DC conversion.
- Q: Does it include an integrated power switch?
- A: Yes, the power MOSFET is integrated on-chip, simplifying design and reducing external component count.
- Q: What is the breakdown voltage rating?
- A: The device has a 700V Vds breakdown rating for robust offline operation.
- Q: How much power can it deliver?
- A: It supports up to 3 W output power at 100kHz switching frequency with 70% max duty cycle.
- Q: What protections are built in?
- A: Current limiting, open loop, over temperature, and short circuit protection are included.
LNK564PN.pdf
