Power Integrations LNK6408E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LinkSwitch™-3 |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 55% |
| Frequency - Switching | Up to 85kHz |
| Power (Watts) | 10 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SSIP, 6 Leads, Exposed Pad, Formed Leads |
| Supplier Device Package | eSIP-7C |
| ROHS |  |

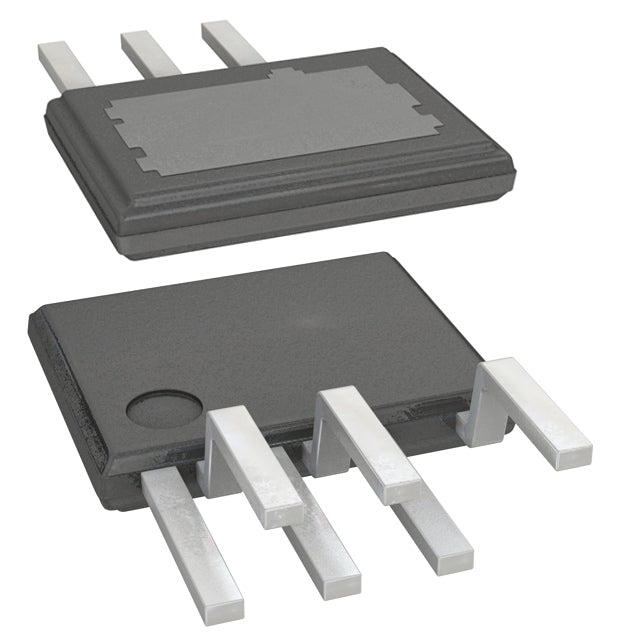

The Power Integrations LNK6408E is a LinkSwitch™-3 flyback offline switcher with an integrated switch and 725V breakdown voltage, delivering up to 10W. It switches at up to 85kHz with a 55% maximum duty cycle and includes current limiting, open loop, over temperature, and short circuit protection. It is housed in a 7-SSIP package with exposed pad and rated for -40°C to 150°C junction temperature.
- Integrated switch simplifies isolated flyback designs and reduces external parts.
- 725V breakdown voltage provides headroom for offline mains operation.
- Up to 85kHz switching and 55% max duty cycle support compact 10W designs.
- Current limiting, open loop, OTP, and SCP protection improve reliability.
- Exposed-pad 7-SSIP package aids thermal performance across -40°C to 150°C.
Compact Isolated Adapters
The LNK6408E uses a flyback topology with an integrated switch to deliver up to 10W in isolated adapters. The 725V breakdown rating provides margin for offline mains operation.
Appliance Auxiliary Supplies
With up to 85kHz switching and 55% maximum duty cycle, this LinkSwitch™-3 device supports compact isolated bias supplies in appliances.
Metering and Control Power
Current limiting, open loop, over temperature, and short circuit protection support reliable isolated flyback supplies in metering and control electronics.
Thermally Demanding Environments
Rated for -40°C to 150°C junction temperature in a 7-SSIP package with exposed pad, the LNK6408E suits isolated supplies in demanding thermal conditions.
