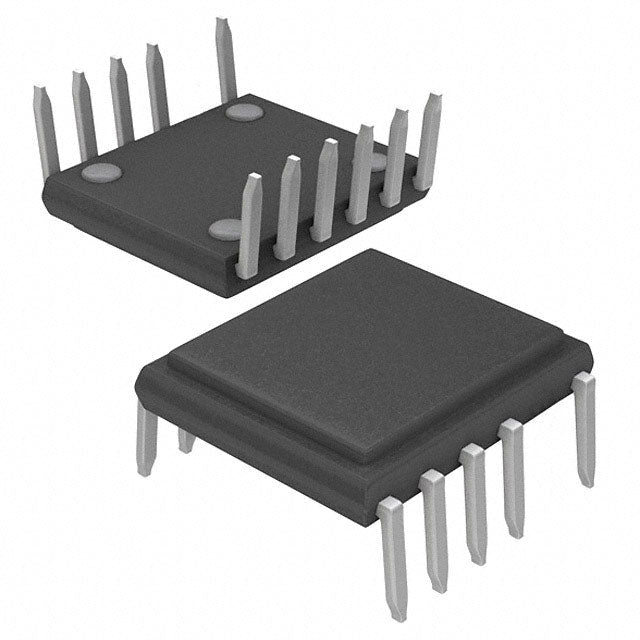

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
LNK6666V
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.41 AED | Dhs. 3.41 AED |
| 15+ | Dhs. 3.31 AED | Dhs. 49.65 AED |
| 25+ | Dhs. 3.24 AED | Dhs. 81.00 AED |
| 50+ | Dhs. 3.06 AED | Dhs. 153.00 AED |
| 100+ | Dhs. 2.70 AED | Dhs. 270.00 AED |
| N+ | Dhs. 0.54 AED | Price Inquiry |
Couldn't load pickup availability
Power Integrations LNK6666V - LinkSwitch™-HP Flyback Switching IC
The LNK6666V is a high-performance AC-DC offline switching IC from Power Integrations' LinkSwitch-HP family, designed for isolated flyback topology applications up to 34W. This integrated solution combines a 650V power MOSFET with advanced control circuitry, delivering reliable power conversion with comprehensive protection features.
Key Features & Benefits
- 34W Power Output: Ideal for industrial, telecom, and consumer power supply applications
- 650V Breakdown Voltage: High-voltage capability for universal input designs
- Integrated Protection: Current limiting, over-load, over-temperature, over-voltage, and short circuit protection
- Efficient Switching: 120kHz to 136kHz frequency range with 64% duty cycle
- Isolated Flyback Topology: Proven architecture for cost-effective power conversion
- Wide Operating Range: -40°C to 150°C junction temperature for demanding environments
- RoHS Compliant: Meets environmental standards for global distribution
Applications
Perfect for aerospace, automotive, industrial control systems, medical equipment, and telecommunications infrastructure requiring reliable, isolated AC-DC power conversion with full traceability and long lifecycle availability.
Authorized Distributor: We provide genuine Power Integrations components with full traceability, datasheets, reference designs, and technical support for design-in assistance.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LinkSwitch™-HP |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Power (Watts) | 34 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Supplier Device Package | eDIP-12 |
| ROHS |  |
LNK6666V.pdf
