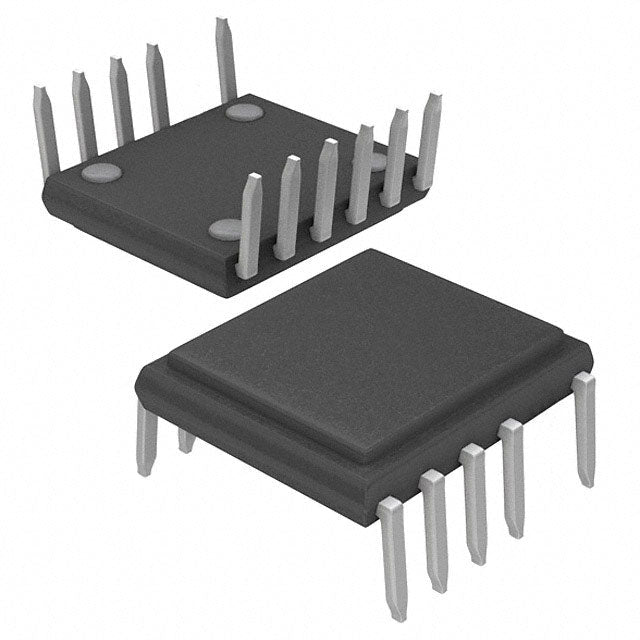

Power Integrations LNK6668V
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.91 | $0.91 |
| 15+ | $0.88 | $13.20 |
| 25+ | $0.86 | $21.50 |
| 50+ | $0.82 | $41.00 |
| 100+ | $0.72 | $72.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LinkSwitch™-HP |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Power (Watts) | 47 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Supplier Device Package | eDIP-12 |
| ROHS |  |
The Power Integrations LNK6668V is a flyback offline switcher from the LinkSwitch™-HP series with an integrated switch and galvanically isolated output. It offers a 650V breakdown rating, 47 W power capability, 120kHz to 136kHz switching frequency, and 64% maximum duty cycle. Protection includes current limiting, over load, over temperature, over voltage, and short circuit, packaged in a 12-SDIP with exposed pad rated for -40°C to 150°C junction temperature.
- Integrated switch simplifies flyback design and reduces external parts.
- 47 W power capability supports medium-power isolated supplies.
- 650V breakdown rating provides margin for offline operation.
- Comprehensive protection including short circuit, over load, over temperature, and over voltage.
- 150°C junction temperature rating enables use in thermally demanding environments.
Medium-Power Adapters
With 47 W output capability and a 650V breakdown rating, the LNK6668V suits medium-power AC-DC adapters that require an isolated flyback stage with an integrated switch.
Industrial Power Supplies
A -40°C to 150°C junction temperature range and comprehensive fault protection make this device appropriate for industrial power supplies operating in harsh conditions.
Appliance and White Goods Power
The flyback topology with galvanic isolation and short circuit protection supports appliance control boards that need a robust, isolated low-voltage rail.
Chargers and Set-Top Power
Switching at 120kHz to 136kHz with 64% maximum duty cycle, the LNK6668V enables compact magnetic designs for chargers and set-top boxes.
- Q: What topology does the LNK6668V use?
- A: It is a flyback offline switcher with galvanically isolated output and an integrated switch.
- Q: What is the breakdown voltage?
- A: The device has a 650V breakdown (Vds) rating.
- Q: How much power can it deliver?
- A: Up to 47 W at a switching frequency of 120kHz to 136kHz.
- Q: What is the maximum duty cycle?
- A: 64% maximum duty cycle.
- Q: What protections are included?
- A: Current limiting, over load, over temperature, over voltage, and short circuit protection.
- Q: What is the operating temperature range?
- A: -40°C to 150°C junction temperature.
