LNK6765V
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.51 AED | Dhs. 2.51 AED |
| 15+ | Dhs. 2.45 AED | Dhs. 36.75 AED |
| 25+ | Dhs. 2.39 AED | Dhs. 59.75 AED |
| 50+ | Dhs. 2.26 AED | Dhs. 113.00 AED |
| 100+ | Dhs. 2.00 AED | Dhs. 200.00 AED |
| N+ | Dhs. 0.40 AED | Price Inquiry |
Couldn't load pickup availability

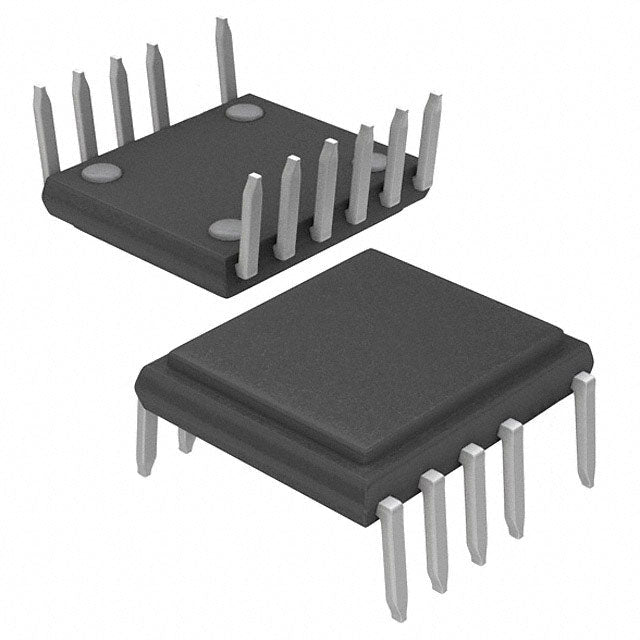

LNK6765V - LinkSwitch™-HP Integrated Offline Switcher IC
The LNK6765V from Power Integrations is a high-performance 30W integrated offline switcher IC designed for isolated flyback AC-DC power conversion applications. This advanced LinkSwitch-HP series device combines a 650V power MOSFET, oscillator, high-voltage switched current source, current limit, and shutdown circuitry onto a single monolithic IC.
Key Features & Benefits:
- 30W Output Power - Optimized for medium-power applications
- 650V Breakdown Voltage - High voltage capability for universal input designs
- Isolated Flyback Topology - Provides galvanic isolation for safety-critical applications
- 120-136kHz Switching Frequency - Enables compact transformer design
- Comprehensive Protection - Current limiting, overload, over-temperature, over-voltage, and short circuit protection
- 64% Maximum Duty Cycle - Optimized for efficient power transfer
- Wide Operating Temperature Range - -40°C to 150°C (TJ) for industrial applications
- RoHS Compliant - Meets environmental standards
Applications:
The LNK6765V is ideal for AC-DC power supplies in consumer electronics, industrial controls, LED lighting drivers, smart home devices, and auxiliary power supplies requiring reliable isolated power conversion with minimal external components.
All specifications are guaranteed by Power Integrations. Full traceability and compliance documentation available upon request.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LinkSwitch™-HP |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Power (Watts) | 30 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Supplier Device Package | eDIP-12 |
| ROHS |  |
