LNK6766V
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.48 AED | Dhs. 3.48 AED |
| 15+ | Dhs. 3.38 AED | Dhs. 50.70 AED |
| 25+ | Dhs. 3.30 AED | Dhs. 82.50 AED |
| 50+ | Dhs. 3.12 AED | Dhs. 156.00 AED |
| 100+ | Dhs. 2.75 AED | Dhs. 275.00 AED |
| N+ | Dhs. 0.55 AED | Price Inquiry |
Couldn't load pickup availability

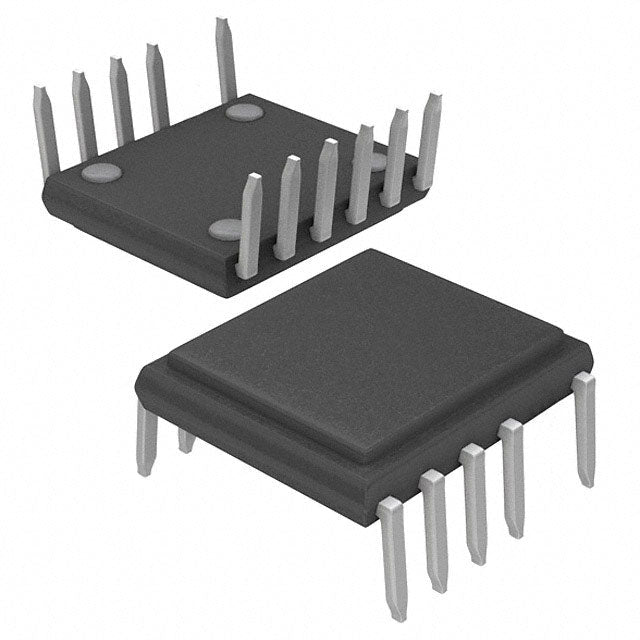

LNK6766V - LinkSwitch™-HP Integrated Offline Switcher
The LNK6766V from Power Integrations is a high-performance integrated offline switcher IC from the LinkSwitch-HP family, designed for isolated flyback topology AC-DC power conversion applications up to 34W. This advanced power management IC integrates a 650V power MOSFET, oscillator, control logic, and comprehensive protection circuitry in a single through-hole eDIP-12 package.
Key Features & Benefits
- High Integration: Reduces component count and simplifies design with integrated 650V MOSFET and control circuitry
- 34W Power Output: Suitable for a wide range of offline power supply applications
- Flyback Topology: Proven, cost-effective isolated power conversion architecture
- 120-136kHz Switching Frequency: Enables compact transformer design while minimizing EMI
- Comprehensive Protection: Built-in current limiting, overload, over-temperature, over-voltage, and short circuit protection
- 64% Maximum Duty Cycle: Optimized for efficient power transfer
- Wide Operating Temperature: -40°C to 150°C (TJ) for demanding industrial and automotive environments
- RoHS Compliant: Meets environmental standards for lead-free manufacturing
Typical Applications
- AC-DC power adapters and chargers
- Auxiliary power supplies for industrial equipment
- Home appliance power supplies
- LED lighting drivers
- Smart home and IoT device power
- Telecom and networking equipment
Why Choose LNK6766V?
The LNK6766V offers exceptional value for engineers designing cost-effective, reliable offline power supplies. Its high level of integration reduces BOM cost and board space while comprehensive protection features enhance system reliability and safety. The through-hole eDIP-12 package provides robust mechanical mounting for industrial applications and simplifies prototyping and production.
Full traceability, authorized distribution, and technical support available. Contact our design-in team for reference designs, application notes, and transformer specifications.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LinkSwitch™-HP |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Power (Watts) | 34 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Supplier Device Package | eDIP-12 |
| ROHS |  |
LNK6766V.pdf
