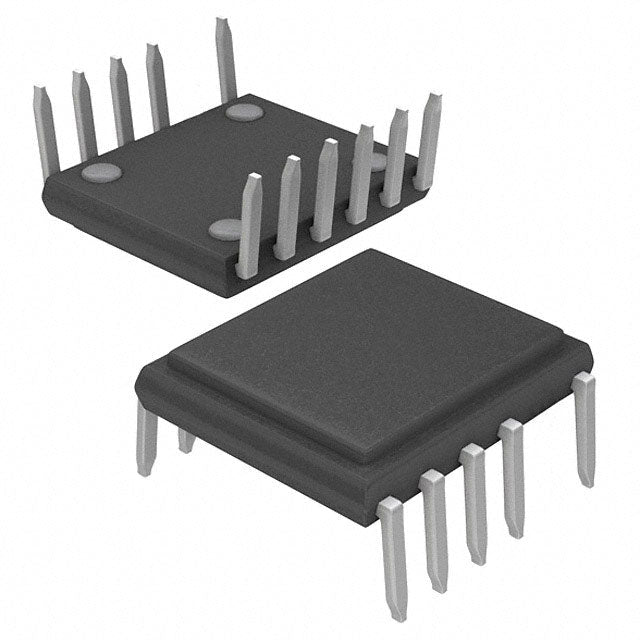

Power Integrations LNK6769V
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.86 | $0.86 |
| 15+ | $0.84 | $12.60 |
| 25+ | $0.82 | $20.50 |
| 50+ | $0.77 | $38.50 |
| 100+ | $0.68 | $68.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LinkSwitch™-HP |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Power (Watts) | 54 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Supplier Device Package | eDIP-12 |
| ROHS |  |
The LNK6769V from Power Integrations is an isolated flyback offline switcher with an integrated 650V switch, part of the LinkSwitch™-HP series. It delivers 54 W with a 120kHz to 136kHz switching frequency range and 64% maximum duty cycle. Protections include current limiting, over load, over temperature, over voltage, and short circuit. Supplied in a 12-SDIP exposed-pad package rated -40°C to 150°C junction.
- Integrated 650V switch simplifies isolated flyback designs.
- 54 W output with 120kHz to 136kHz switching for compact adapters.
- Comprehensive protection: current limiting, over load, over temperature, over voltage, and short circuit.
- 64% max duty cycle and exposed-pad 12-SDIP package for space-constrained designs.
- Wide -40°C to 150°C junction range for demanding environments.
Isolated Flyback Power Supplies
The LNK6769V is an isolated flyback offline switcher with an integrated 650V switch, providing galvanic isolation for AC-DC conversion up to 54 W.
Higher-Power Adapters and Chargers
54 W output with a 120kHz to 136kHz switching frequency range supports compact isolated designs for higher-power adapters.
Appliance and Consumer Electronics
Comprehensive protection including current limiting, over load, over temperature, over voltage, and short circuit supports dependable operation in appliance and consumer power supplies.
Compact Isolated Designs
64% max duty cycle and the 12-SDIP exposed-pad package support space-constrained isolated power designs.
Demanding Thermal Environments
A -40°C to 150°C junction temperature range supports use in thermally demanding applications.
- Q: What topology does the LNK6769V use?
- A: It is a Flyback offline switcher in an isolated configuration.
- Q: Is the switch integrated?
- A: Yes, an internal switch with a 650V breakdown rating is integrated.
- Q: What is the switching frequency range?
- A: 120kHz to 136kHz.
- Q: What is the power rating and max duty cycle?
- A: 54 W output with 64% maximum duty cycle.
- Q: What protections are included?
- A: Current limiting, over load, over temperature, over voltage, and short circuit protection.
- Q: What package and temperature range?
- A: 12-SDIP package rated -40°C to 150°C junction.
