Power Integrations LNK6775V
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.48 | Dhs. 3.48 |
| 15+ | Dhs. 3.38 | Dhs. 50.70 |
| 25+ | Dhs. 3.30 | Dhs. 82.50 |
| 50+ | Dhs. 3.12 | Dhs. 156.00 |
| 100+ | Dhs. 2.75 | Dhs. 275.00 |
| N+ | Dhs. 0.55 | Price Inquiry |
Request Quote / Inquiry

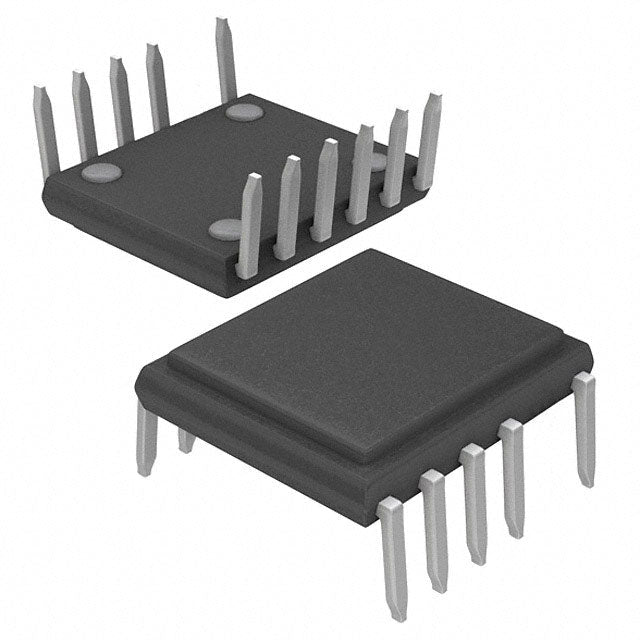

LNK6775V - LinkSwitch™-HP Offline Switcher IC
The LNK6775V from Power Integrations is a high-performance offline switcher IC designed for cost-effective, energy-efficient AC-DC power conversion up to 30W. Part of the proven LinkSwitch-HP family, this integrated controller combines a 725V power MOSFET, oscillator, high-voltage switched current source, current limit, and protection circuitry on a single chip.
Key Features & Benefits
- Integrated Design: Reduces component count and simplifies PCB layout
- 30W Power Output: Ideal for consumer electronics, industrial controls, and smart home devices
- Flyback Topology: Proven architecture for isolated power supplies
- Wide Switching Frequency: 120kHz to 136kHz for optimized transformer design
- Comprehensive Protection: Current limiting, overload, over-temperature, over-voltage, and short-circuit protection
- High Reliability: -40°C to 150°C junction temperature range
- RoHS Compliant: Meets environmental standards for global markets
Typical Applications
- AC-DC adapters and chargers
- Auxiliary power supplies
- LED lighting drivers
- Smart home and IoT devices
- Industrial control systems
- White goods and appliances
Why Choose LNK6775V?
As an authorized distributor, we provide genuine Power Integrations components with full traceability, datasheets, and technical support. The LNK6775V offers design engineers a reliable, cost-effective solution for isolated AC-DC power conversion with built-in protection features that reduce external component requirements and accelerate time-to-market.
Documentation: Full datasheet and reference designs available for download.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LinkSwitch™-HP |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Power (Watts) | 30 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Supplier Device Package | eDIP-12 |
| ROHS |  |
