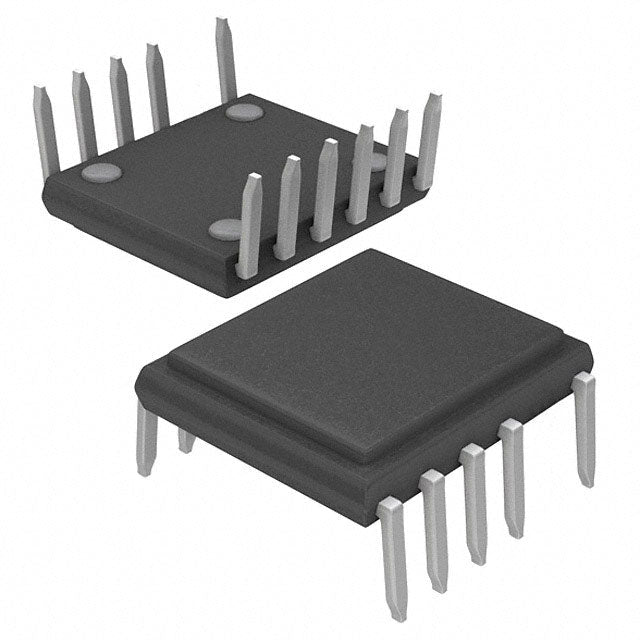

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
LNK6777V
Regular price
Dhs. 3.82
Regular price
Dhs. 4.01
Sale price
Dhs. 3.82
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.82 AED | Dhs. 3.82 AED |
| 15+ | Dhs. 3.69 AED | Dhs. 55.35 AED |
| 25+ | Dhs. 3.61 AED | Dhs. 90.25 AED |
| 50+ | Dhs. 3.41 AED | Dhs. 170.50 AED |
| 100+ | Dhs. 3.01 AED | Dhs. 301.00 AED |
| N+ | Dhs. 0.60 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Recycling Electronic Components
LNK6777V - LinkSwitch™-HP Integrated Offline Switcher IC
The LNK6777V from Power Integrations is a high-performance integrated offline switcher IC designed for isolated flyback AC-DC power conversion applications up to 41W. This advanced LinkSwitch-HP family device integrates a 725V power MOSFET, oscillator, high-voltage switched current source, current limit, and thermal shutdown circuitry onto a single monolithic IC.
Key Features & Benefits
- High Integration: Reduces component count and simplifies design with integrated control and protection features
- Wide Operating Range: 120kHz to 136kHz switching frequency with 64% duty cycle for optimal efficiency
- Comprehensive Protection: Built-in current limiting, overload, over-temperature, over-voltage, and short circuit protection
- Industrial Grade: Operating temperature range from -40°C to 150°C (TJ) for demanding applications
- RoHS Compliant: Meets environmental standards for global market access
- Through-Hole Mounting: eDIP-12 package for reliable PCB assembly
Typical Applications
Ideal for power supplies in industrial controls, white goods, LED lighting drivers, smart meters, building automation, and other cost-sensitive isolated AC-DC conversion applications requiring high reliability and long lifecycle support.
| Product attributes | Property Value |
| Manufacturer | Power Integrations |
| Product Series | LinkSwitch™-HP |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 64% |
| Frequency - Switching | 120kHz ~ 136kHz |
| Power (Watts) | 41 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 12-SDIP (0.412", 10.46mm), 11 Leads, Exposed Pad |
| Supplier Device Package | eDIP-12 |
| ROHS |  |
