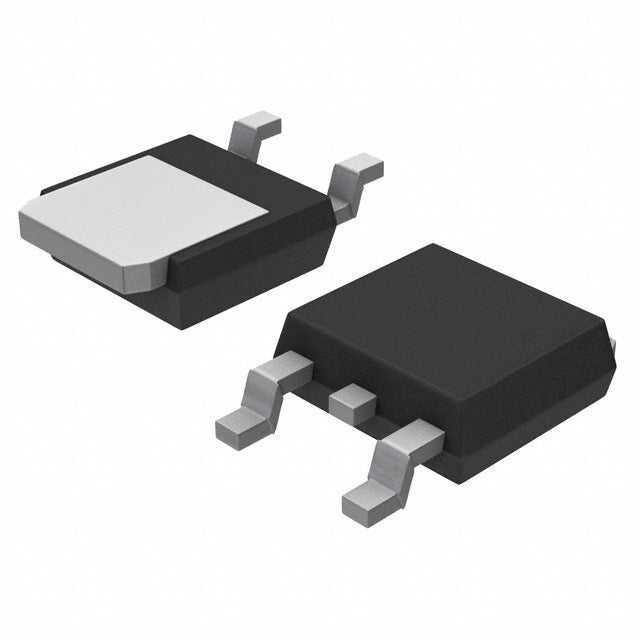

onsemi LP2950ACDT-5.0G
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.27 | $1.27 |
| 15+ | $1.23 | $18.45 |
| 25+ | $1.21 | $30.25 |
| 50+ | $1.14 | $57.00 |
| 100+ | $1.01 | $101.00 |
| N+ | $0.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.45V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 12 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| ROHS |  |
The LP2950ACDT-5.0G from onsemi is a 5V fixed-output LDO regulator delivering 100mA. With a low 120 µA quiescent current and 0.45V dropout, it is optimized for battery-powered applications. The DPAK package provides adequate thermal performance for moderate loads, ensuring reliable operation in portable and industrial designs.
- Low Quiescent Current: 120 µA extends battery life in always-on applications.
- Very Low Dropout: 0.45V at 100mA allows operation from nearly depleted batteries.
- Stable 5V Output: Fixed output ideal for logic and sensor supplies.
- Compact DPAK: Balances thermal performance with board space efficiency.
Battery-Powered Devices
Low 120 µA quiescent current and 0.45V dropout make it ideal for 5V rails from 6V batteries in portable equipment.
Instrumentation Amplifiers
Clean 5V supply with low dropout ensures stable operation of precision analog circuits in measurement tools.
Microcontroller Power
100mA capacity is sufficient for MCUs and small peripherals, with low quiescent current for sleep modes.
Automotive Sensors
DPAK package handles thermal loads in engine bay sensors, providing stable 5V for signal conditioning.
Remote Monitoring
Low power consumption extends battery life in remote telemetry units, with reliable 5V output.
Portable Radios
Stable 5V rail for RF circuits, with low dropout maintaining output during battery discharge.
- Q: What is the output voltage?
- A: The LP2950ACDT-5.0G provides a fixed 5V output.
- Q: What is the maximum output current?
- A: It can supply up to 100mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; consult the datasheet.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.45V at 100mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 120 µA.
- Q: What package is available?
- A: It comes in the DPAK package.
