Texas Instruments LP2950ACZ-5.0/LFT1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.93 | $0.93 |
| 15+ | $0.90 | $13.50 |
| 25+ | $0.88 | $22.00 |
| 50+ | $0.83 | $41.50 |
| 100+ | $0.74 | $74.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 14 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |

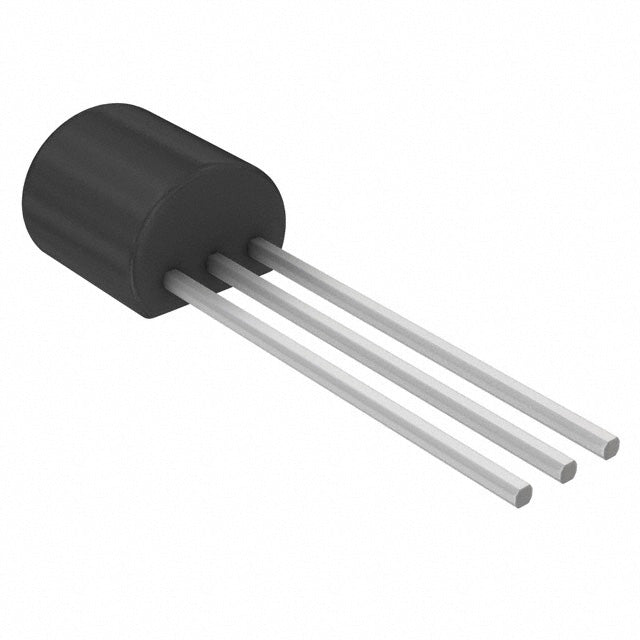

| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 |
| ROHS |  |
The LP2950ACZ-5.0/LFT1 from Texas Instruments is a fixed 5.0V LDO regulator capable of 100mA output. With a low quiescent current of 120 µA and dropout of 0.6V, it is well-suited for battery-operated and industrial applications. The TO-92-3 package allows easy integration.
- Low Power Consumption: 120 µA quiescent current preserves battery life.
- Simple Integration: TO-92 package is easy to solder and breadboard.
- Stable 5V Output: Ideal for legacy 5V logic and sensor systems.
- Proven Reliability: Texas Instruments quality for industrial and automotive use.
Battery-Powered Instruments
Low 120 µA quiescent current and 100mA output suit portable multimeters and field test equipment.
Automotive Sensors
TO-92 package and 5V output are ideal for legacy 5V sensor interfaces in engine control units.
Industrial Control Systems
Provides a stable 5V reference for PLCs and process controllers with moderate current needs.
Consumer Electronics
Powers 5V logic circuits in remote controls, toys, and small appliances.
Telecom Line Cards
Reliable 5V rail for line driver and interface circuits in legacy telecom equipment.
Hobbyist and Maker Projects
Through-hole TO-92 package is breadboard-friendly for prototyping and educational use.
- Q: What is the output voltage of the LP2950ACZ-5.0/LFT1?
- A: The fixed output voltage is 5.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 100mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.6V at 100mA output current.
- Q: What is the quiescent current?
- A: The quiescent current is 120 µA.
- Q: What package is available?
- A: It comes in a TO-92-3 package.
