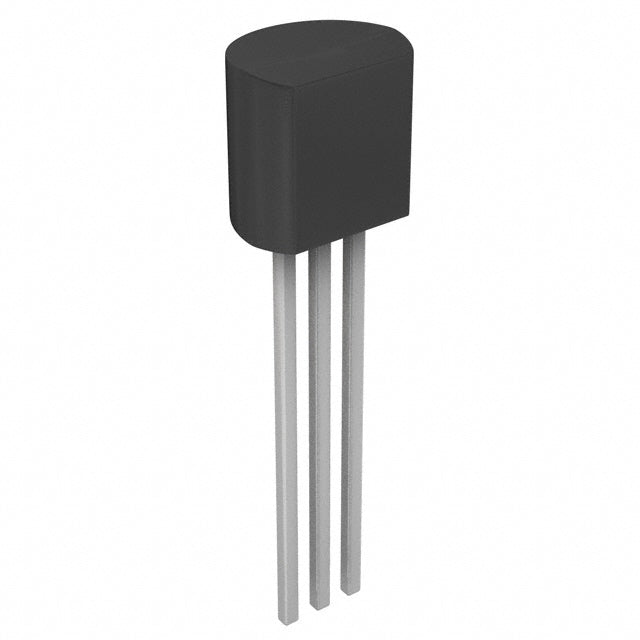

Texas Instruments LP2950ACZ-5.0/LFT3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.89 | $1.89 |
| 15+ | $0.43 | $6.45 |
| 25+ | $0.42 | $10.50 |
| 50+ | $0.40 | $20.00 |
| 100+ | $0.35 | $35.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Box (TB) | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 14 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 |
| ROHS |  |
The LP2950ACZ-5.0/LFT3 is a fixed 5.0V low dropout linear regulator from Texas Instruments, delivering up to 100mA of output current. It features a low dropout voltage of 0.6V at full load and a quiescent current of 120 µA. Housed in a through-hole TO-92-3 package, this regulator is designed for a wide range of applications, including battery-powered devices, automotive, and industrial systems, offering reliable and stable 5V power.
- Wide Input Voltage Range: Supports input voltages up to 30V, making it versatile for various applications.
- Low Dropout: 0.6V dropout at 100mA ensures efficient operation with minimal headroom.
- Low Quiescent Current: 120 µA quiescent current helps extend battery life in portable devices.
- Through-Hole Package: TO-92-3 package is easy to use in prototyping and breadboarding.
Battery-Powered Instruments
The LP2950ACZ-5.0/LFT3 provides a stable 5V reference for portable instruments, with low quiescent current (120 µA) and low dropout (0.6V) to maximize battery life.
Automotive Electronics
With a wide input voltage range (up to 30V), this LDO is suitable for automotive applications where input voltage can vary significantly.
Industrial Control Systems
Provide a reliable 5V supply for microcontrollers and logic circuits in industrial controllers, ensuring stable operation in noisy environments.
Consumer Electronics
Power 5V logic and interface circuits in consumer devices, leveraging the through-hole TO-92 package for easy prototyping and assembly.
Telecommunication Equipment
Use as a clean 5V supply for telecom interface ICs, where the low dropout voltage ensures regulation even with marginal input voltages.
Sensor Conditioning Circuits
Provide a stable 5V rail for sensor signal conditioning circuits, ensuring accurate and repeatable measurements.
- Q: What is the output voltage of the LP2950ACZ-5.0/LFT3?
- A: The fixed output voltage is 5.0V.
- Q: What is the maximum output current?
- A: It can provide up to 100mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 6V to 30V (not explicitly provided, typical for LP2950 family).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.6V at 100mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 120 µA.
- Q: What is the package type?
- A: It comes in a TO-92-3 package.
