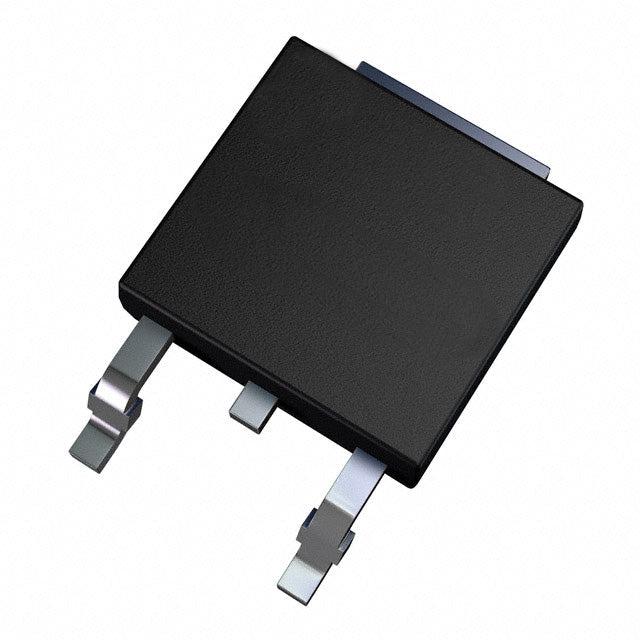

Texas Instruments LP2950CDTX-3.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.97 | $0.97 |
| 15+ | $0.94 | $14.10 |
| 25+ | $0.92 | $23.00 |
| 50+ | $0.87 | $43.50 |
| 100+ | $0.77 | $77.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 14 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| ROHS |  |
The LP2950CDTX-3.0/NOPB from Texas Instruments is a fixed 3.0V low dropout regulator capable of 100mA output. With a low quiescent current of 120 µA and a dropout voltage of 0.6V at full load, it is well-suited for battery-operated and industrial applications. The TO-252-3 package offers excellent thermal performance for reliable operation across temperature ranges.
- Reliable Thermal Performance: TO-252-3 package dissipates heat efficiently, ensuring stable operation at high ambient temperatures.
- Low Power Consumption: 120 µA quiescent current reduces standby drain in battery-powered systems.
- Proven TI Quality: Backed by Texas Instruments' rigorous reliability standards for industrial and automotive use.
- Simple Fixed Output: No external resistor divider needed, reducing component count and design complexity.
Automotive ECU Power Rails
The TO-252-3 package handles thermal dissipation well, providing a stable 3.0V rail for microcontroller I/O in engine control units, with 100mA capacity for logic circuits.
Industrial Control Systems
With 120 µA quiescent current and robust DPAK package, this regulator suits always-on industrial sensors and PLC modules requiring reliable 3.0V reference.
Battery-Powered Instrumentation
Low dropout of 0.6V allows operation from a 3.6V Li-ion cell down to 3.0V, extending runtime for handheld multimeters and field calibrators.
Telecom Line Cards
Stable 3.0V output with 100mA capacity powers line driver ICs in telecom equipment, ensuring consistent signal integrity.
Consumer Appliances
Simple fixed-output design reduces BOM complexity in white goods, providing clean 3.0V for display drivers and touch controllers.
- Q: What is the output voltage of the LP2950CDTX-3.0/NOPB?
- A: The fixed output voltage is 3.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 100mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.6V at 100mA output current.
- Q: What is the quiescent current?
- A: The quiescent current is 120 µA.
- Q: What package is available?
- A: It comes in a TO-252-3 (DPAK) package.
