Texas Instruments LP2986IMM-5.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.30 | $2.30 |
| 15+ | $2.23 | $33.45 |
| 25+ | $2.18 | $54.50 |
| 50+ | $2.06 | $103.00 |
| 100+ | $1.82 | $182.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 120 μA |
| Current - Supply (Max) | 3.7 mA |
| PSRR | 65dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| ROHS |  |

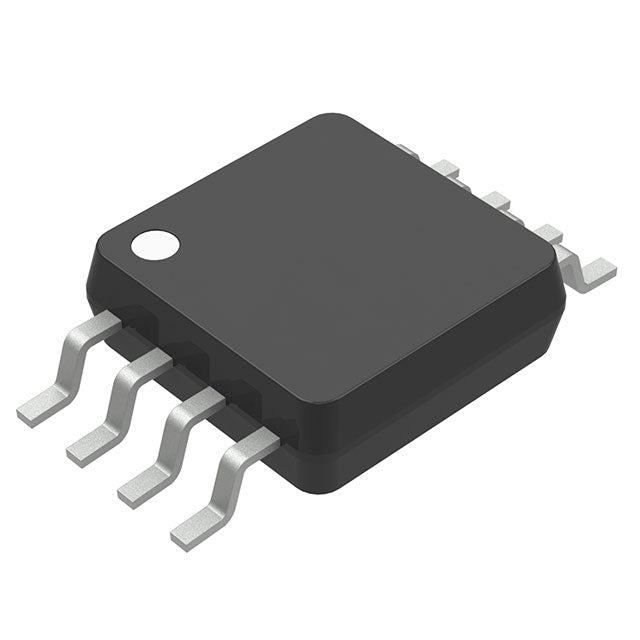

The LP2986IMM-5.0/NOPB from Texas Instruments is a fixed 5V low-dropout regulator capable of delivering 200mA. It features a low quiescent current of 120 μA and a dropout voltage of just 0.35V at full load. The 8-VSSOP package makes it a compact solution for space-constrained designs requiring a stable and noise-free power supply.
- Compact Footprint: 8-VSSOP package saves board space in miniaturized designs.
- Low Power Loss: 0.35V dropout at 200mA reduces heat generation and improves efficiency.
- Stable Output: 65dB PSRR at 1kHz ensures minimal noise coupling from input supply.
- Low Quiescent Current: 120 μA helps extend battery life in portable applications.
Battery-Powered Instrumentation
The LP2986IMM-5.0/NOPB's 120 μA quiescent current and 5V output make it ideal for precision sensors and data acquisition systems in portable devices.
Noise-Sensitive Audio Circuits
With 65dB PSRR at 1kHz, this regulator provides a clean 5V rail for op-amps and audio codecs, minimizing hum and interference.
Automotive ECUs
Its small 8-VSSOP footprint and stable 5V output are well-suited for engine control units and body electronics requiring a reliable reference supply.
Industrial Process Control
Delivering 200mA with a low 0.35V dropout, it efficiently powers microcontrollers and transceivers in 24V industrial systems.
Medical Monitoring Devices
The low noise and stable output support accurate readings in portable patient monitors and glucose meters.
Communication Modules
Provides a clean 5V supply for RF transceivers and baseband processors, ensuring consistent signal integrity.
- Q: What is the output voltage of the LP2986IMM-5.0/NOPB?
- A: The output voltage is fixed at 5.0V.
- Q: What is the maximum output current?
- A: The maximum output current is 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet for recommended operating conditions.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.35V at 200mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 120 μA.
- Q: What package is available?
- A: The device is available in an 8-VSSOP package.
