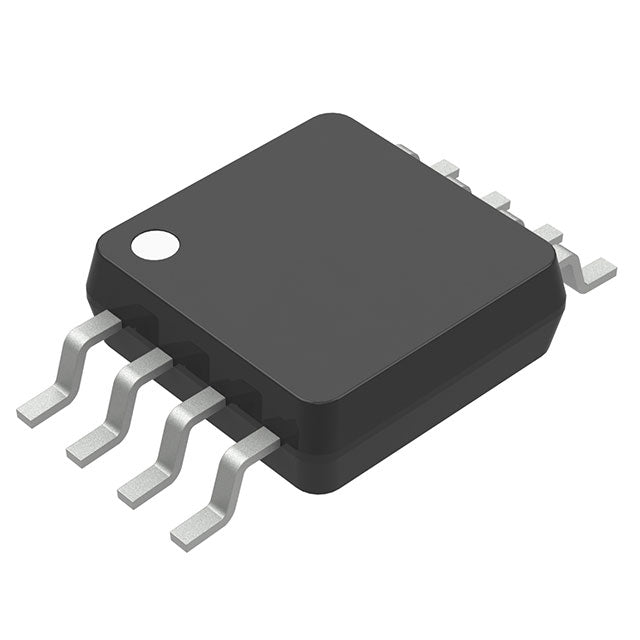

Texas Instruments LP2989AIMM-3.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.63 | $3.63 |
| 15+ | $3.51 | $52.65 |
| 25+ | $3.44 | $86.00 |
| 50+ | $3.25 | $162.50 |
| 100+ | $2.87 | $287.00 |
| N+ | $0.57 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.65V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 175 µA |
| Current - Supply (Max) | 9 mA |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| ROHS |  |
The LP2989AIMM-3.0/NOPB is a 500mA low-dropout regulator with a fixed 3.0V output. Featuring 60dB PSRR at 1kHz and a dropout of 0.65V at full load, it delivers clean, stable power for noise-sensitive analog and RF circuits. The 8-VSSOP package is ideal for compact portable designs.
- Excellent Noise Rejection: 60dB PSRR at 1kHz filters high-frequency interference.
- Reliable 500mA Output: Supports moderate-load applications with stable 3.0V.
- Compact 8-VSSOP: Saves PCB area for space-limited designs.
- Low Dropout: 0.65V at 500mA enables efficient 3.65V to 3.0V conversion.
RF Transceiver Power Supplies
60dB PSRR at 1kHz suppresses noise from switching regulators, ensuring clean 3.0V for GSM/WiFi modules.
Audio Codec Supply
Low noise and 500mA capability power audio codecs in portable players, maintaining signal integrity.
FPGA Core Voltage
Stable 3.0V rail for low-power FPGA cores with 0.65V dropout margin from 3.6V input.
Automotive Infotainment
8-VSSOP package fits head-unit PCBs, providing regulated 3.0V for display drivers and touch controllers.
Industrial Sensor Interfaces
High PSRR rejects 120Hz ripple from rectified AC, delivering clean 3.0V to precision sensors.
Portable Instrumentation
175µA quiescent current supports handheld multimeters and calibrators with long battery life.
- Q: What is the output voltage?
- A: Fixed 3.0V output.
- Q: What is the maximum current?
- A: 500mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; consult the datasheet.
- Q: What is the dropout voltage?
- A: 0.65V at 500mA.
- Q: What is the quiescent current?
- A: 175µA.
- Q: What is the PSRR?
- A: 60dB at 1kHz.
LP2989AIMM-3.0/NOPB.pdf
- Q: What is the output voltage?
- A: Fixed 3.0V output.
- Q: What is the maximum current?
- A: 500mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; consult the datasheet.
- Q: What is the dropout voltage?
- A: 0.65V at 500mA.
- Q: What is the quiescent current?
- A: 175µA.
- Q: What is the PSRR?
- A: 60dB at 1kHz.
