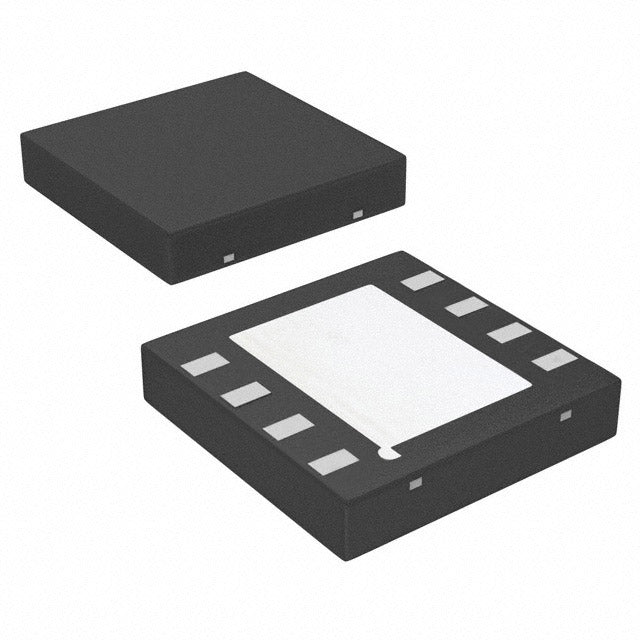

Texas Instruments LP2989ILD-2.5/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.14 | $3.14 |
| 15+ | $3.05 | $45.75 |
| 25+ | $2.98 | $74.50 |
| 50+ | $2.81 | $140.50 |
| 100+ | $2.48 | $248.00 |
| N+ | $0.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.65V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 175 μA |
| Current - Supply (Max) | 9 mA |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (4x4) |
| ROHS |  |
The Texas Instruments LP2989ILD-2.5/NOPB is a precision, fixed 2.5V low dropout linear regulator designed for low-power and noise-sensitive applications. It delivers up to 500mA of current while maintaining a low 175 μA quiescent current, making it ideal for battery-powered devices. With a dropout voltage of just 0.65V and excellent PSRR, this regulator ensures a stable and clean output. Its compact 8-WSON package is perfect for space-constrained designs.
- Ultra-Low Quiescent Current: The 175 μA quiescent current extends battery life in portable and standby applications.
- High Accuracy: Provides a precise 2.5V output, ideal for powering sensitive analog and digital circuits.
- Low Dropout Voltage: The 0.65V dropout at 500mA allows for efficient operation with a small input-to-output voltage difference.
- Compact Package: The 8-WSON (4x4) package saves valuable board space in space-constrained designs.
Battery-Powered Portable Devices
Power microcontrollers, sensors, and wireless modules in battery-operated devices. The low 175 μA quiescent current significantly extends battery life in standby and active modes.
Noise-Sensitive Analog Circuits
Provide a clean 2.5V supply for operational amplifiers, ADCs, and DACs. The 60dB PSRR at 1kHz helps maintain signal integrity by rejecting power supply noise.
Memory and Digital Core Supplies
Supply a stable 2.5V rail for DDR memory termination, FPGA core logic, or other digital circuits that require a precise and low-noise voltage.
Portable Medical Devices
In battery-powered medical equipment like glucose monitors or hearing aids, the LP2989's low quiescent current and small footprint make it an ideal power management solution.
Wireless Sensors and IoT Nodes
For IoT devices that spend most of their time in sleep mode, the ultra-low quiescent current is critical for maximizing battery life while providing a stable 2.5V supply for the sensor and radio.
Automotive Interior Electronics
Power infotainment systems, dashboard sensors, and other interior electronics that require a stable and noise-free 2.5V supply, benefiting from the regulator's reliability and performance.
- Q: What is the output voltage of the LP2989ILD-2.5/NOPB?
- A: It provides a fixed 2.5V output.
- Q: What is the maximum output current?
- A: The maximum output current is 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is not explicitly specified in the provided data; refer to the datasheet for the full operating range.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.65V at a 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is very low at 175 μA.
- Q: What package is available?
- A: It is available in an 8-WSON (4x4) package.
