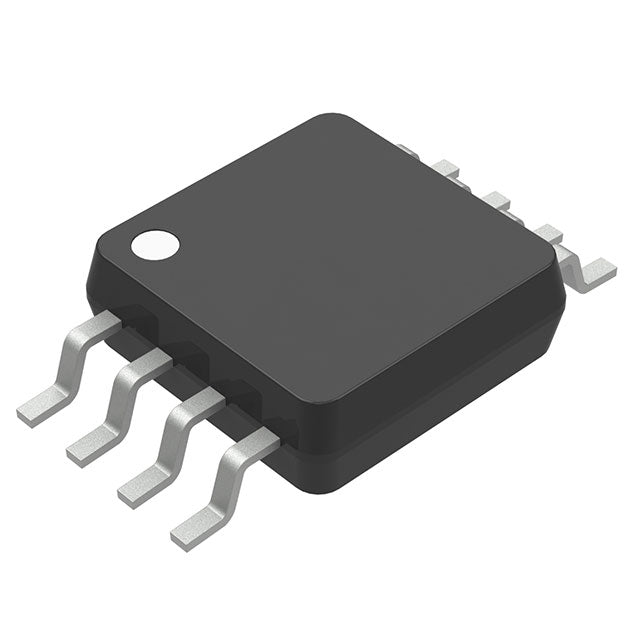

Texas Instruments LP2989IMM-3.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.83 | $2.83 |
| 15+ | $2.74 | $41.10 |
| 25+ | $2.68 | $67.00 |
| 50+ | $2.53 | $126.50 |
| 100+ | $2.24 | $224.00 |
| N+ | $0.45 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.65V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 175 μA |
| Current - Supply (Max) | 9 mA |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| ROHS |  |
The Texas Instruments LP2989IMM-3.0/NOPB is a fixed 3.0V low dropout linear regulator capable of delivering 500mA. With a low quiescent current of 175 μA and a dropout voltage of just 0.65V at full load, it is engineered for efficiency in battery-operated systems. Its 60dB PSRR at 1kHz ensures clean, stable power for sensitive electronics. Housed in a compact 8-VSSOP package, this regulator balances performance and footprint for modern PCB designs.
- Extended Battery Life: Ultra-low 175 μA quiescent current minimizes standby power draw.
- High Ripple Rejection: 60dB PSRR at 1kHz filters noise for sensitive analog loads.
- Low Dropout: 0.65V dropout at 500mA maintains regulation near end-of-battery voltage.
- Compact Footprint: 8-VSSOP package saves board space in dense designs.
Battery-Powered Portable Devices
The low 175 μA quiescent current and 500mA output capability make it ideal for extending battery life in handheld instruments and wireless sensors.
Noise-Sensitive Analog Circuits
With 60dB PSRR at 1kHz, this regulator effectively filters power supply noise for precision analog-to-digital converters and operational amplifiers.
Automotive Infotainment Systems
The wide input voltage range and stable 3.0V output support microcontroller and DSP power rails in car audio and navigation systems.
Industrial Control Modules
Its robust thermal performance in the VSSOP package suits space-constrained PLC I/O modules requiring clean 3V logic supply.
Medical Monitoring Equipment
The low dropout ensures consistent 3.0V output even when battery voltage sags, critical for reliable patient monitoring devices.
Networking Equipment
Provides clean, regulated power for Ethernet PHY transceivers, reducing bit errors caused by supply ripple.
- Q: What is the output voltage of the LP2989IMM-3.0/NOPB?
- A: This LDO provides a fixed 3.0V output.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 3V up to 16V (absolute maximum).
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.65V at a 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 175 μA, making it suitable for battery-powered applications.
- Q: What package is available?
- A: It is available in an 8-pin VSSOP package.
