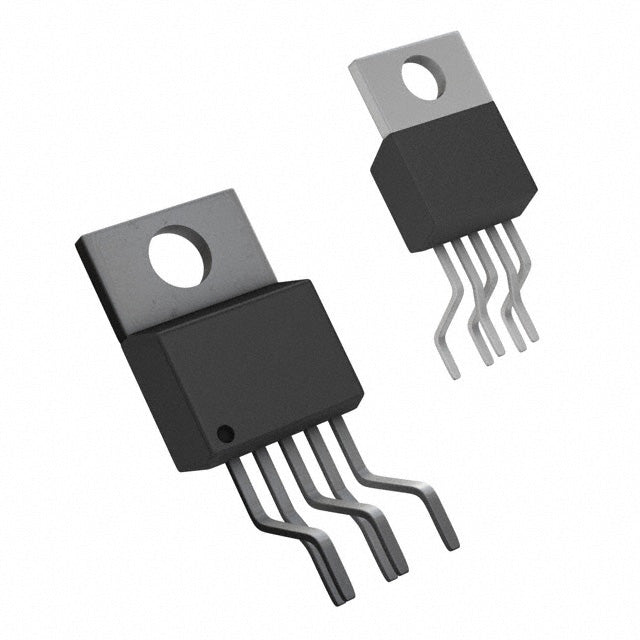

Texas Instruments LP3855ET-3.3/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.69 | $6.69 |
| 15+ | $1.54 | $23.10 |
| 25+ | $1.50 | $37.50 |
| 50+ | $1.42 | $71.00 |
| 100+ | $1.25 | $125.00 |
| N+ | $0.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.38V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 3 mA |
| Current - Supply (Max) | 10 mA |
| PSRR | 73dB ~ 57dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220-5 |
| ROHS |  |
The LP3855ET-3.3/NOPB is a fixed 3.3V LDO regulator from Texas Instruments, delivering up to 1.5A. Its low dropout of 0.38V at full load and 3 mA quiescent current make it efficient for high-current applications. The TO-220-5 package provides superior thermal dissipation, while PSRR of 73dB to 57dB at 120Hz ensures clean output.
- High Output Current: 1.5A capability for demanding loads.
- Low Dropout Voltage: 0.38V at 1.5A reduces power dissipation.
- Thermally Efficient: TO-220-5 package ideal for continuous high-current operation.
- Stable 3.3V Rail: Reliable for digital and mixed-signal circuits.
FPGA Core Power
1.5A at 3.3V supports FPGA I/O banks and auxiliary logic with low dropout for stable operation.
Industrial Automation
Robust TO-220-5 package and high current capability suit PLCs and motor controllers.
Telecom Infrastructure
Provides reliable 3.3V for base stations and networking hardware with good thermal performance.
Power Supply Post-Regulation
Low dropout allows efficient post-regulation from 5V rails to 3.3V with minimal loss.
Medical Equipment
Stable output and high current support diagnostic devices requiring consistent 3.3V.
LED Display Drivers
Clean 3.3V supply for logic sections of LED drivers, reducing flicker and errors.
- Q: What is the output voltage of the LP3855ET-3.3/NOPB?
- A: It provides a fixed 3.3V output.
- Q: What is the maximum output current?
- A: It can deliver up to 1.5A of output current.
- Q: What is the input voltage range?
- A: The input voltage should be between 3.3V plus dropout and 7V maximum.
- Q: What is the dropout voltage?
- A: Dropout is 0.38V at 1.5A load.
- Q: What is the quiescent current?
- A: Quiescent current is 3 mA.
- Q: What package is available?
- A: It comes in a TO-220-5 package.
