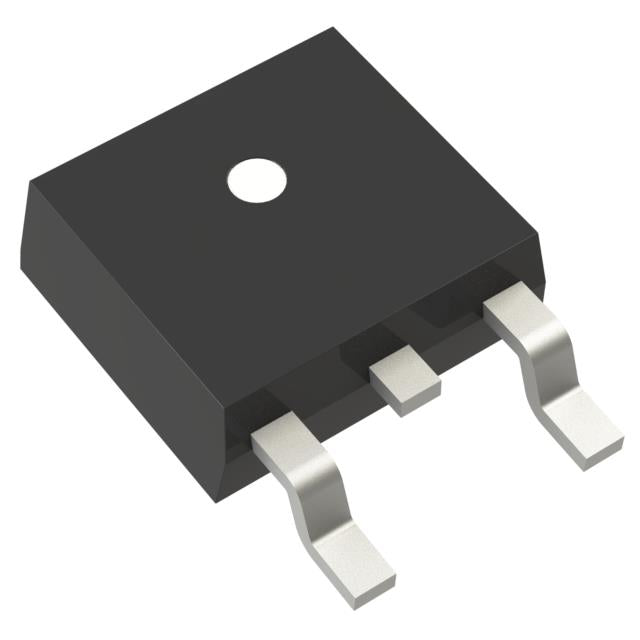

Texas Instruments LP38690DTX-5.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.70 | $1.70 |
| 15+ | $1.65 | $24.75 |
| 25+ | $1.61 | $40.25 |
| 50+ | $1.52 | $76.00 |
| 100+ | $1.34 | $134.00 |
| N+ | $0.27 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.8V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 100 µA |
| PSRR | 55dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252-3 |
| ROHS |  |
The LP38690DTX-5.0/NOPB from Texas Instruments is a fixed 5V low dropout linear regulator capable of delivering 1A of output current. Its low 55 µA quiescent current and 0.8V dropout voltage make it ideal for battery-operated and high-efficiency systems. The TO-252-3 package ensures excellent thermal performance for continuous operation.
- Extended Battery Life: Ultra-low 55 µA quiescent current reduces standby power consumption in portable devices.
- High Current Capacity: 1A output supports power-hungry loads like microcontrollers and wireless modules.
- Low Dropout: 0.8V dropout at full load allows operation from a 5.5V rail with minimal headroom.
- Clean Output: 55dB PSRR at 120Hz suppresses ripple from switching power supplies.
Battery-Powered Industrial Sensors
The low 55 µA quiescent current extends battery life in remote industrial sensors that require a stable 5V rail for analog and digital circuitry.
Automotive Infotainment Systems
With 1A output capability and 0.8V dropout, this regulator powers microcontrollers and display drivers in head units, maintaining 5V even during cranking conditions.
Portable Medical Devices
The 55dB PSRR at 120Hz filters mains-related noise, ensuring clean power for sensitive diagnostic equipment operating from a 5V supply.
Networking Equipment
Provides a regulated 5V bus for small switches and routers, handling transient loads up to 1A without significant voltage droop.
Precision Reference Supplies
Its stable output and low noise characteristics make it suitable as a local 5V reference for ADC/DAC circuits in test and measurement tools.
Home Automation Hubs
Powers Zigbee or Z-Wave radios and microcontrollers from a 12V bus, converting down to 5V with minimal heat dissipation due to low dropout.
- Q: What is the output voltage of the LP38690DTX-5.0/NOPB?
- A: The fixed output voltage is 5.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 5.5V up to 10V.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.8V at a 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 55 µA, making it suitable for battery-powered applications.
- Q: What package is available?
- A: It is available in a TO-252-3 (DPAK) package.
