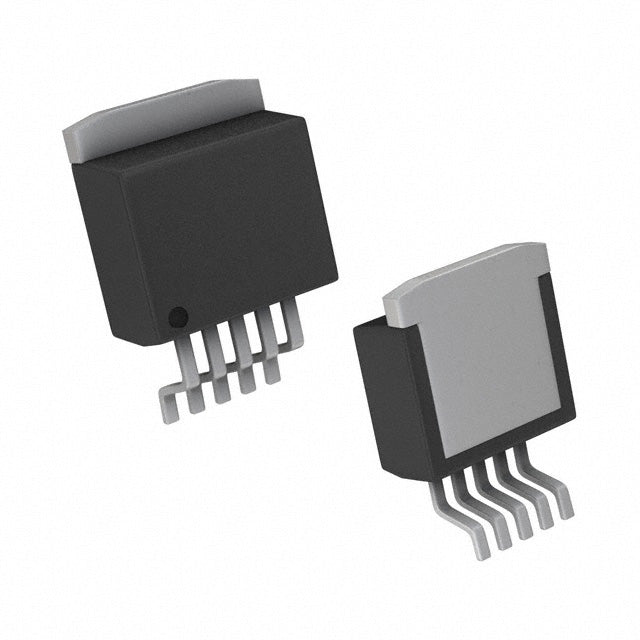

Texas Instruments LP3965ES-2.5/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.44 | $4.44 |
| 15+ | $4.30 | $64.50 |
| 25+ | $4.20 | $105.00 |
| 50+ | $3.97 | $198.50 |
| 100+ | $3.50 | $350.00 |
| N+ | $0.70 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.55V @ 1.5A |
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 9 mA |
| Current - Supply (Max) | 15 mA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263 (DDPAK-5) |
| ROHS |  |
The Texas Instruments LP3965ES-2.5 is a 1.5A low dropout regulator providing a fixed 2.5V output. With a dropout of 0.55V at full load, it efficiently powers digital cores. The TO-263 package ensures excellent thermal performance. Ideal for FPGA, DSP, and networking applications.
- High Current: 1.5A output supports demanding digital loads.
- Low Dropout: 0.55V at 1.5A maximizes headroom.
- Thermal Efficiency: TO-263 package dissipates heat effectively.
- Stable 2.5V Rail: Fixed output for precision digital circuits.
FPGA Core Power
The 1.5A output and 2.5V rail are ideal for powering FPGA core logic, with low dropout ensuring stable operation.
DSP and Microprocessor Supplies
Provides clean 2.5V power for DSPs and MCUs, with 9 mA quiescent current for moderate efficiency.
Networking Equipment
Regulates 2.5V for ASICs and PHY transceivers in routers and switches, with TO-263 package for heat dissipation.
Industrial Automation
Powers PLC I/O modules and sensor interfaces, delivering reliable 2.5V with 1.5A capability.
Consumer Electronics
Used in set-top boxes and gaming consoles for low-voltage digital rails.
- Q: What is the output voltage?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 1.5A.
- Q: What is the input voltage range?
- A: The input voltage range is 2.5V (typical operating range per datasheet).
- Q: What is the dropout voltage?
- A: Dropout is 0.55V at 1.5A load.
- Q: What is the quiescent current?
- A: Quiescent current is 9 mA.
- Q: What package is available?
- A: It comes in TO-263 (DDPAK-5) package.
