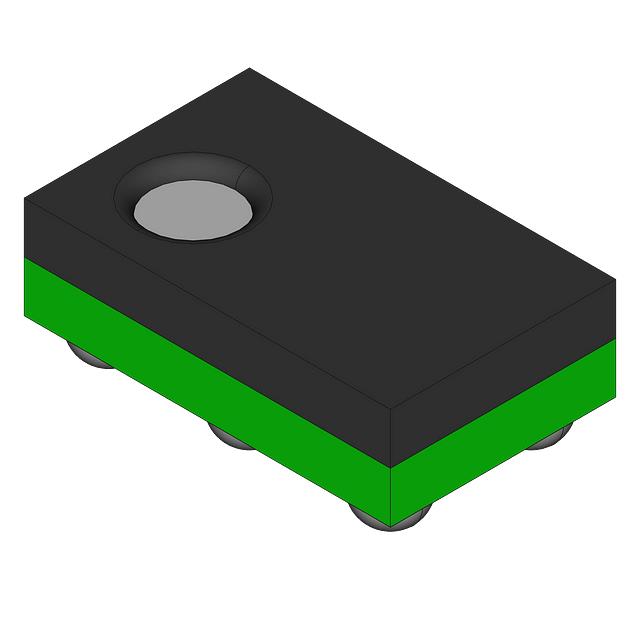

National Semiconductor LP3985ITL-285
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.80 | $0.80 |
| 15+ | $0.18 | $2.70 |
| 25+ | $0.18 | $4.50 |
| 50+ | $0.17 | $8.50 |
| 100+ | $0.15 | $15.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 250 µA |
| PSRR | 50dB ~ 40dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA (1.41x1.08) |
The LP3985ITL-285 from National Semiconductor is an ultra-small, fixed 2.85V LDO regulator designed for space-constrained portable electronics. It delivers up to 150mA with an exceptionally low dropout voltage of just 0.1V at full load. The 5-DSBGA package and low 150µA quiescent current make it an excellent choice for battery-powered and miniaturized applications.
- Ultra-Miniature Size: 5-DSBGA package (1.41x1.08mm) is among the smallest available, ideal for micro-electronics.
- Lowest Dropout: 0.1V dropout at 150mA maximizes efficiency and extends battery life.
- Low Quiescent Current: 150µA quiescent current minimizes standby power consumption.
- Precision Output: Fixed 2.85V output is well-suited for specific RF and analog ICs.
Ultra-Compact Wearables
The tiny 5-DSBGA package (1.41x1.08mm) is ideal for smartwatches, fitness bands, and medical patches where board space is extremely limited.
RF and Analog Front-Ends
The 2.85V output is often used for RF circuits and analog front-ends. The low dropout of 0.1V ensures stable operation from a 3.0V battery.
Battery-Powered Portable Devices
With 150µA quiescent current and low dropout, it maximizes battery life in portable devices like MP3 players and digital cameras.
Precision Sensor Power
Provides a clean, stable 2.85V supply for MEMS sensors, gyroscopes, and accelerometers, improving measurement accuracy.
Mobile Phone Accessories
Suitable for powering noise-sensitive circuits in smartphone accessories, such as external DACs and camera modules.
- Q: What is the output voltage of the LP3985ITL-285?
- A: The fixed output voltage is 2.85V.
- Q: What is the maximum output current?
- A: It can provide up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.1V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What package is available?
- A: It comes in a 5-DSBGA package (1.41x1.08 mm).
