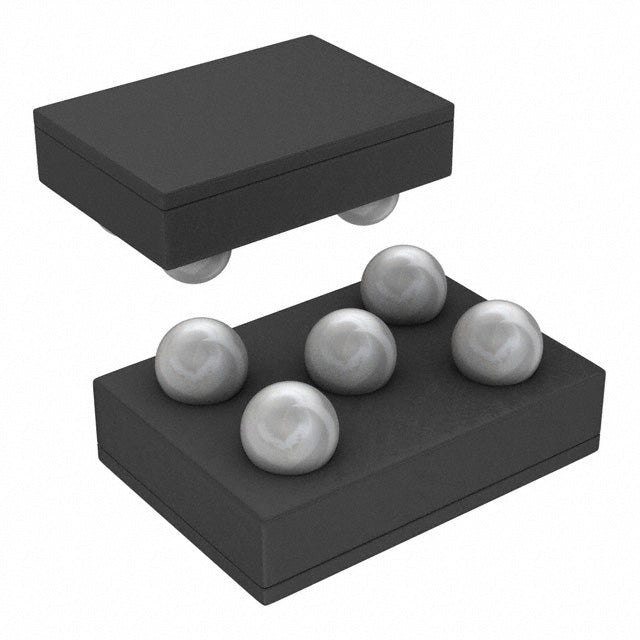

Texas Instruments LP3988ITL-2.6/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.12 | $1.12 |
| 15+ | $0.60 | $9.00 |
| 25+ | $0.59 | $14.75 |
| 50+ | $0.55 | $27.50 |
| 100+ | $0.49 | $49.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 65dB ~ 45dB (1kHz ~ 10kHz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA (1.41x1.08) |
| ROHS |  |
The LP3988ITL-2.6/NOPB from Texas Instruments is a low dropout linear regulator offering a fixed 2.6V output and a maximum current of 150mA. It features an ultra-low dropout voltage of just 0.15V and a quiescent current of 120 µA. The ultra-compact 5-DSBGA (1.41x1.08) package is designed for space-critical portable applications.
- Ultra-Low Dropout: The 0.15V dropout voltage allows operation from very low input voltages, improving efficiency.
- Minimal Footprint: The 5-DSBGA package is one of the smallest available, ideal for miniaturized designs.
- Stable Output: Provides a precise 2.6V rail for sensitive electronics.
- Good Noise Performance: PSRR of 65dB to 45dB from 1kHz to 10kHz helps filter high-frequency noise.
Ultra-Compact Wearables
The tiny 5-DSBGA package and low dropout voltage make it ideal for space-constrained wearable devices like smart watches and fitness trackers.
Mobile Phones
Provide a clean 2.6V rail for powering RF transceivers and other noise-sensitive components in smartphones.
Portable Audio Players
The low dropout and good PSRR help maintain audio quality by providing a stable supply voltage.
Bluetooth Modules
Power low-energy Bluetooth modules with a stable 2.6V supply, ensuring reliable wireless communication.
Medical Implants
The small size and low power consumption make it suitable for powering miniature medical devices.
- Q: What is the output voltage of the LP3988ITL-2.6/NOPB?
- A: The fixed output voltage is 2.6V.
- Q: What is the maximum output current?
- A: It can provide up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.15V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 120 µA.
- Q: What package is available?
- A: It comes in a 5-DSBGA (1.41x1.08) package.
