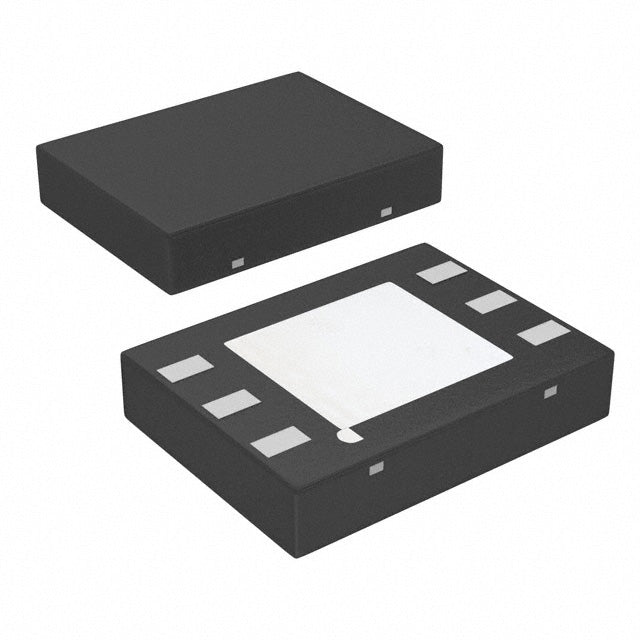

Texas Instruments LP3995ILD-1.5/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.57 | $0.57 |
| 15+ | $0.55 | $8.25 |
| 25+ | $0.54 | $13.50 |
| 50+ | $0.51 | $25.50 |
| 100+ | $0.45 | $45.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2.92x3.29) |
| ROHS |  |
The LP3995ILD-1.5/NOPB from Texas Instruments is a fixed 1.5V LDO regulator capable of delivering 150mA. Its ultra-low dropout of 0.1V at full load makes it ideal for low-voltage applications where headroom is limited. The 6-WSON package is compact for space-constrained designs. With 60dB PSRR at 1kHz, it effectively filters supply noise, ensuring clean power for sensitive analog and RF circuits.
- Ultra-Low Dropout: 0.1V at 150mA enables operation from very low input voltages, maximizing efficiency.
- Excellent PSRR: 60dB at 1kHz reduces power supply noise, critical for RF and audio applications.
- Compact 6-WSON Package: Small footprint (2.92x3.29mm) ideal for miniaturized portable devices.
- Precise 1.5V Output: Fixed output ensures accuracy for low-voltage digital cores.
RF Power Amplifier Biasing
The low dropout of 0.1V at 150mA ensures stable 1.5V supply for RF PA bias circuits, maintaining linearity and output power.
DSP Core Voltage Supply
Provides clean 1.5V rail for low-voltage DSP cores in audio processing, with 60dB PSRR at 1kHz reducing supply noise.
FPGA Auxiliary Logic
Ideal for powering auxiliary logic banks in FPGAs that require a precise 1.5V reference, ensuring reliable I/O operation.
Battery-Powered Instruments
With 150mA capability and low dropout, it efficiently powers sensors and microcontrollers from a single Li-ion cell.
Portable Audio DACs
The high PSRR (60dB at 1kHz) minimizes power supply interference, preserving audio signal integrity in portable players.
- Q: What is the output voltage?
- A: The LP3995ILD-1.5/NOPB provides a fixed 1.5V output.
- Q: What is the maximum output current?
- A: It can supply up to 150mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please consult the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.1V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What is the package type?
- A: It comes in a 6-WSON (2.92x3.29) package.
LP3995ILD-1.5/NOPB.pdf
- Q: What is the output voltage?
- A: The LP3995ILD-1.5/NOPB provides a fixed 1.5V output.
- Q: What is the maximum output current?
- A: It can supply up to 150mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please consult the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.1V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What is the package type?
- A: It comes in a 6-WSON (2.92x3.29) package.
