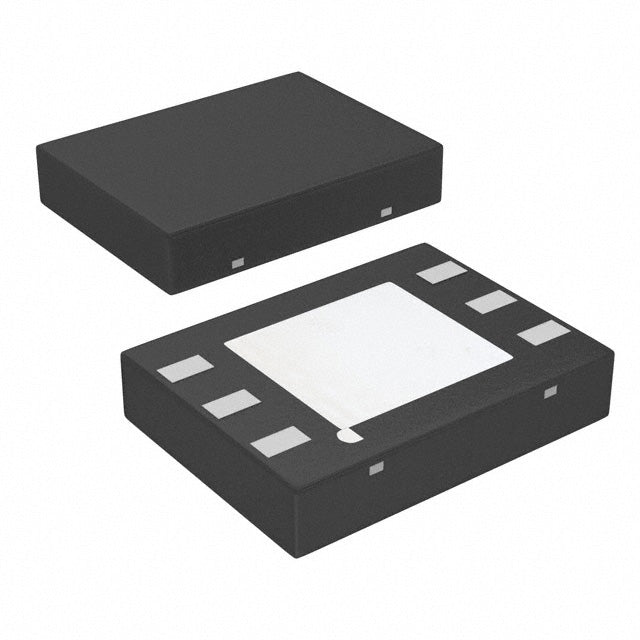

Texas Instruments LP3995ILD-1.8/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.57 | $0.57 |
| 15+ | $0.55 | $8.25 |
| 25+ | $0.54 | $13.50 |
| 50+ | $0.51 | $25.50 |
| 100+ | $0.45 | $45.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2.92x3.29) |
| ROHS |  |
The LP3995ILD-1.8/NOPB is a fixed 1.8V low-dropout linear regulator from Texas Instruments, capable of delivering up to 150mA. Housed in a compact 6-WSON package, it features an ultra-low dropout voltage of just 0.1V at full load and a quiescent current of 150µA. With PSRR of 60dB at 1kHz, it provides excellent noise filtering for sensitive portable electronics. This regulator is ideal for battery-powered IoT devices, wearables, and medical instruments where space and power efficiency are paramount.
- Ultra-Low Dropout: 0.1V dropout at 150mA maximizes usable battery voltage.
- Compact Footprint: 6-WSON package (2.92x3.29mm) saves critical board space in portable designs.
- Low Noise: 60dB PSRR at 1kHz ensures clean power for RF and analog circuits.
- Low Quiescent Current: 150µA quiescent current reduces standby power in battery devices.
- Stable Output: Fixed 1.8V output is ideal for modern low-voltage digital ICs.
Portable Battery-Powered Devices
The LP3995ILD-1.8/NOPB provides a stable 1.8V rail for low-power microcontrollers and sensors in wearables. Its ultra-low 0.1V dropout at 150mA extends battery life in compact devices.
Wireless IoT Modules
For Bluetooth Low Energy and Zigbee modules, this regulator delivers clean 1.8V power with 60dB PSRR at 1kHz, reducing RF interference and improving signal integrity.
MEMS Sensor Bias
In accelerometers and gyroscopes, the LP3995 provides a low-noise 1.8V supply, ensuring accurate measurements in industrial monitoring and consumer electronics.
FPGA Core Supply
Small FPGAs and CPLDs often require 1.8V for I/O banks. The 6-WSON package saves board space while delivering the necessary current with minimal voltage drop.
Audio Codec Power
In smartphones and tablets, this LDO powers audio codecs with a clean 1.8V rail, minimizing noise and distortion in headphone amplifiers.
Portable Medical Devices
For glucose monitors and pulse oximeters, the LP3995 ensures reliable operation with its low quiescent current and stable output, critical for battery-powered health devices.
- Q: What is the output voltage of the LP3995ILD-1.8/NOPB?
- A: The fixed output voltage is 1.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.0V to 6.0V (typical for this family; verify with datasheet).
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.1V at a 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is typically 150 µA.
- Q: What package is available?
- A: It comes in a 6-WSON (2.92x3.29) package.
