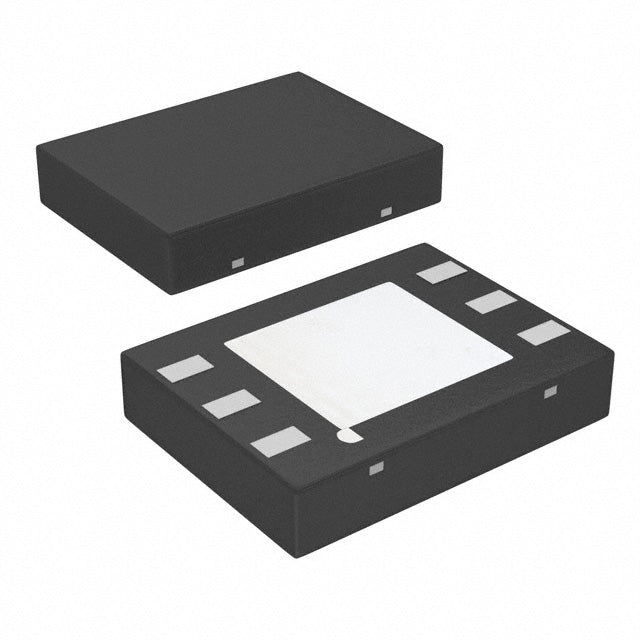

Texas Instruments LP3995ILD-2.8/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.28 | $2.28 |
| 15+ | $0.52 | $7.80 |
| 25+ | $0.51 | $12.75 |
| 50+ | $0.48 | $24.00 |
| 100+ | $0.43 | $43.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2.92x3.29) |
| ROHS |  |
The LP3995ILD-2.8/NOPB from Texas Instruments is a low dropout linear regulator providing a fixed 2.8V output with up to 150mA current. Its exceptional 0.1V dropout at full load enables operation from very low input voltages, making it perfect for battery-powered applications. With 150µA quiescent current and PSRR of 60dB at 1kHz, it delivers clean, efficient power in a compact 6-WSON package.
- Ultra-Low Dropout: 0.1V at 150mA maximizes battery utilization.
- Compact Size: 6-WSON package (2.92x3.29mm) for space-constrained designs.
- Stable Output: 60dB PSRR at 1kHz reduces noise for sensitive loads.
- Low Power: 150µA quiescent current for energy-efficient operation.
Portable Consumer Electronics
Ultra-low dropout of 0.1V allows operation from nearly depleted batteries, extending runtime in smartphones and tablets.
Wireless Peripherals
60dB PSRR at 1kHz ensures stable power for Bluetooth and Wi-Fi modules in IoT devices.
Medical Wearables
Compact 6-WSON package and low dropout make it ideal for hearing aids and fitness trackers.
Digital Cameras
Clean 2.8V rail for image sensors and DSPs, reducing noise in captured images.
Portable Gaming
Reliable power for handheld gaming consoles, supporting 150mA peak loads.
Smart Home Devices
Stable output for sensors and microcontrollers in smart thermostats and security cameras.
- Q: What is the output voltage?
- A: Fixed 2.8V output.
- Q: What is the maximum current?
- A: 150mA maximum output current.
- Q: What is the input voltage range?
- A: 2.8V input (typical).
- Q: What is the dropout voltage?
- A: Very low dropout of 0.1V at 150mA.
- Q: What is the quiescent current?
- A: 150µA quiescent current.
- Q: What package is available?
- A: 6-WSON (2.92x3.29) package.
