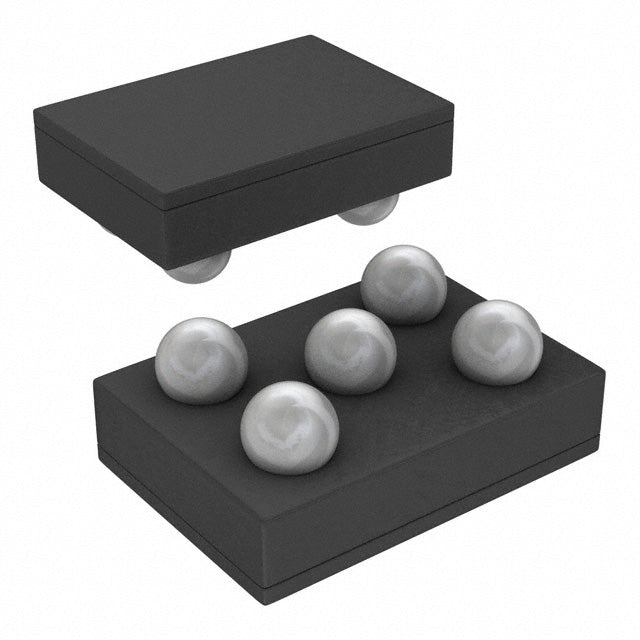

Texas Instruments LP3995ITL-1.5/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.46 | $2.46 |
| 15+ | $0.57 | $8.55 |
| 25+ | $0.56 | $14.00 |
| 50+ | $0.53 | $26.50 |
| 100+ | $0.47 | $47.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA (1.41x1.08) |
| ROHS |  |
The LP3995ITL-1.5/NOPB is a fixed-output LDO regulator delivering 150mA with an ultra-low dropout of just 0.1V. Its 5-DSBGA package is among the smallest available, perfect for miniaturized designs. With 150 µA quiescent current and 60dB PSRR at 1kHz, it provides clean, efficient power for low-voltage applications.
- Ultra-Low Dropout: 0.1V at 150mA allows operation from very low input voltages, maximizing efficiency.
- Minimal Footprint: 5-DSBGA package (1.41x1.08mm) saves critical board space.
- Good Noise Rejection: 60dB PSRR at 1kHz ensures stable output for sensitive loads.
- Low Power: 150 µA quiescent current is suitable for battery-operated devices.
Ultra-Compact Wearables
The tiny 5-DSBGA package (1.41x1.08mm) is ideal for smartwatches, fitness bands, and hearables where PCB space is extremely limited.
Low-Voltage Core Supplies
Provides a precise 1.5V rail for low-power MCUs and memory modules, with ultra-low dropout of 0.1V enabling operation from 1.6V inputs.
RF and Wireless Modules
With PSRR of 60dB at 1kHz, it minimizes noise coupling into RF transceivers, improving signal integrity in Bluetooth and Zigbee designs.
Battery-Powered Medical Implants
The low dropout and small footprint make it suitable for hearing aids and implantable sensors where efficiency and size are critical.
Portable Consumer Electronics
Ideal for digital cameras, MP3 players, and handheld gaming devices requiring a stable 1.5V supply with minimal power loss.
- Q: What is the output voltage of the LP3995ITL-1.5/NOPB?
- A: The fixed output voltage is 1.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is only 0.1V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What package is available?
- A: It comes in a 5-DSBGA package measuring 1.41x1.08mm.
