Texas Instruments LP3995ITL-2.5/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.57 | $0.57 |
| 15+ | $0.55 | $8.25 |
| 25+ | $0.54 | $13.50 |
| 50+ | $0.51 | $25.50 |
| 100+ | $0.45 | $45.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA (1.41x1.08) |
| ROHS |  |

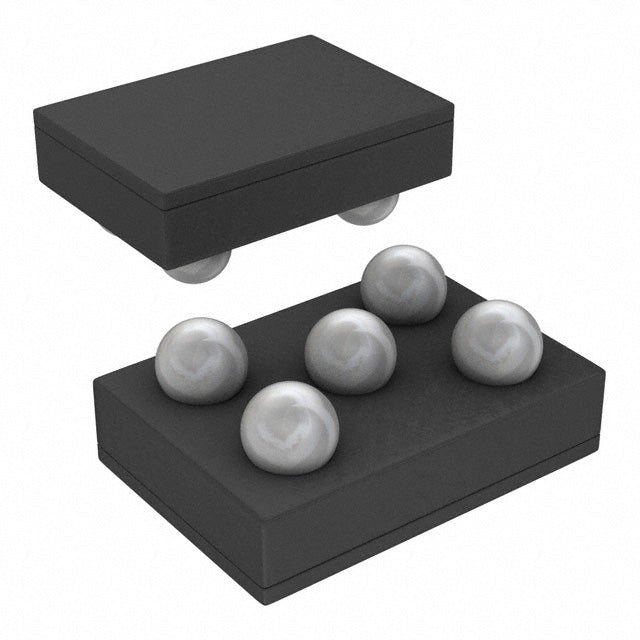

The LP3995ITL-2.5/NOPB from Texas Instruments is a 150mA low dropout linear regulator with a fixed 2.5V output. Its ultra-compact 5-DSBGA package (1.41x1.08mm) is designed for space-constrained portable electronics. With a low dropout voltage of 0.1V at full load and good PSRR, this LDO delivers clean, stable power in the smallest possible footprint.
- Minimal Footprint: 5-DSBGA package (1.41x1.08mm) is among the smallest available for 150mA LDOs.
- Low Dropout: 0.1V at 150mA maximizes efficiency in battery-powered designs.
- Good Noise Performance: 60dB PSRR at 1kHz filters supply ripple effectively.
- Proven Reliability: Texas Instruments quality and long-term availability.
Ultra-Miniature Wearables
The tiny 5-DSBGA package (1.41x1.08mm) is ideal for smart earbuds, fitness bands, and medical patches where board space is at a premium.
Mobile Phone Accessories
Provides a stable 2.5V rail for sensor hubs, NFC controllers, and display drivers in compact form factors.
Portable Medical Devices
Low dropout of 0.1V at 150mA ensures reliable operation from a single Li-ion cell, critical for glucose monitors and hearing aids.
Wireless Charging Receivers
Regulates the output from wireless power receivers to a clean 2.5V for downstream charging ICs.
Smart Home Sensors
Powers temperature, humidity, and motion sensors with minimal footprint and good PSRR (60dB at 1kHz).
Battery Management Systems
Provides a reference voltage for fuel gauge ICs and protection circuits in compact battery packs.
- Q: What is the output voltage of the LP3995ITL-2.5/NOPB?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.1V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150µA.
- Q: What package is available?
- A: It comes in a 5-DSBGA (1.41x1.08) package.
