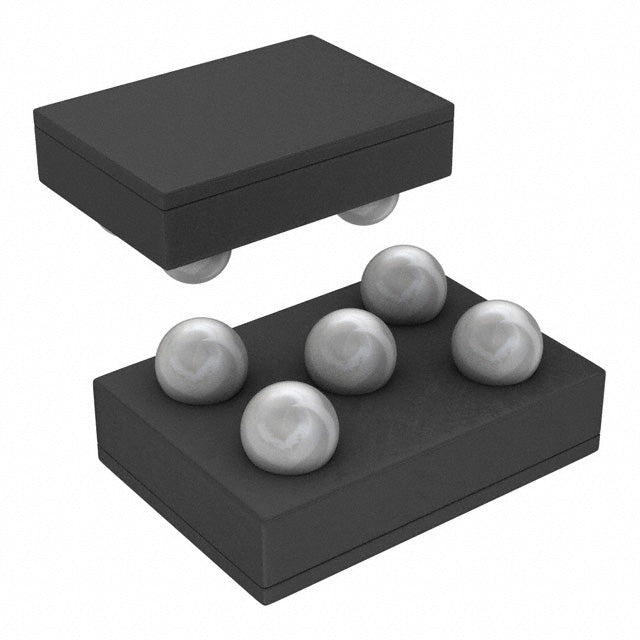

Texas Instruments LP3995ITL-2.8/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.08 | $1.08 |
| 15+ | $1.05 | $15.75 |
| 25+ | $1.03 | $25.75 |
| 50+ | $0.97 | $48.50 |
| 100+ | $0.86 | $86.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA (1.41x1.08) |
| ROHS |  |
The LP3995ITL-2.8/NOPB is a fixed 2.8V low-dropout linear regulator from Texas Instruments, capable of delivering 150mA. With a dropout voltage of just 0.1V at full load, it maximizes efficiency in battery-powered designs. The device features a quiescent current of 150 µA and provides PSRR of 60dB at 1kHz, ensuring clean power for noise-sensitive circuits. Its ultra-compact 5-DSBGA package (1.41x1.08mm) is ideal for space-constrained portable electronics.
- Ultra-Low Dropout: 0.1V at 150mA minimizes input-to-output voltage loss, improving efficiency.
- Miniature Package: 5-DSBGA (1.41x1.08mm) enables high-density PCB layouts.
- Good PSRR: 60dB at 1kHz filters power supply noise for analog circuits.
- Stable 2.8V Output: Fixed output simplifies design for standard logic and RF loads.
Portable Audio Players
The low dropout of 0.1V at 150mA ensures minimal power loss, while the 60dB PSRR at 1kHz keeps audio codecs free from power supply noise.
Smartphone Peripheral ICs
Its ultra-small 5-DSBGA package (1.41x1.08mm) fits into tight spaces for powering camera modules or display drivers at 2.8V.
Wireless Modules
For Bluetooth or Zigbee modules requiring a stable 2.8V rail, this LDO provides clean power with 50dB rejection at 10kHz, reducing RF interference.
Battery-Powered Instruments
With 150 µA quiescent current, it balances performance and efficiency for handheld multimeters and portable test equipment.
LED Driver Bias Supplies
The 2.8V output can bias LED driver control circuits, with the low dropout ensuring operation even as the battery discharges.
Industrial Sensors
Its stable output and small footprint make it suitable for industrial sensor interfaces requiring a precise 2.8V reference.
- Q: What is the output voltage?
- A: The LP3995ITL-2.8/NOPB provides a fixed 2.8V output.
- Q: What is the maximum output current?
- A: It can supply up to 150mA of output current.
- Q: What is the dropout voltage?
- A: The dropout voltage is only 0.1V at 150mA load, enabling efficient operation.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA, suitable for moderate power applications.
- Q: What package is available?
- A: It comes in a 5-DSBGA package measuring 1.41x1.08mm.
- Q: What is the PSRR?
- A: It offers 60dB to 50dB ripple rejection from 1kHz to 10kHz.
