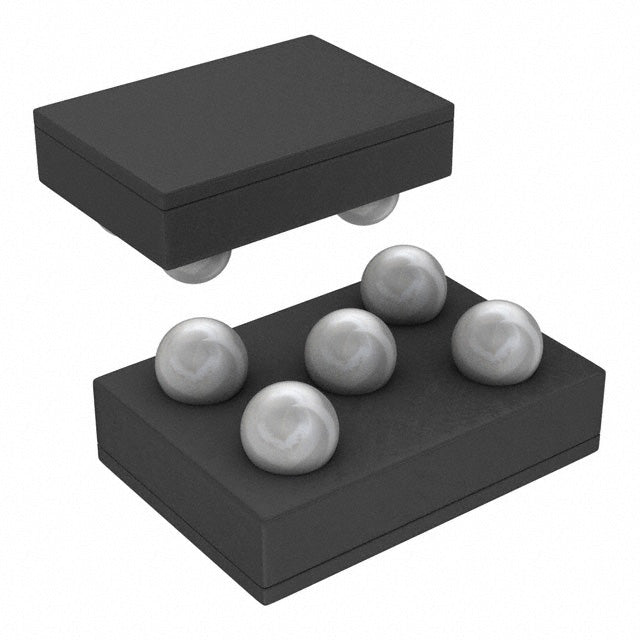

Texas Instruments LP3995ITL-3.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.08 | $1.08 |
| 15+ | $1.05 | $15.75 |
| 25+ | $1.03 | $25.75 |
| 50+ | $0.97 | $48.50 |
| 100+ | $0.86 | $86.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA (1.41x1.08) |
| ROHS |  |
The LP3995ITL-3.0/NOPB from Texas Instruments is a precision low-dropout linear regulator delivering a fixed 3.0V output at up to 150mA. Its ultra-small 5-DSBGA package and low 0.1V dropout voltage make it suitable for compact, battery-operated designs. With 150µA quiescent current and excellent PSRR (60dB at 1kHz), it ensures clean, stable power for noise-sensitive applications.
- Ultra-small footprint: 5-DSBGA (1.41x1.08mm) saves PCB space for miniaturized designs.
- Low dropout voltage: 0.1V at 150mA maximizes efficiency in battery-powered systems.
- High PSRR: 60dB at 1kHz rejects supply noise for clean analog power.
- Stable fixed output: 3.0V output eliminates external resistor dividers, reducing component count.
Battery-Powered Portable Devices
The 3.0V fixed output and low 0.1V dropout at 150mA make it ideal for maintaining stable voltage as batteries discharge, extending usable runtime in handheld instruments and remote controls.
Wireless Sensor Nodes
With 60dB PSRR at 1kHz, this LDO effectively filters noise from switching regulators or RF transmitters, ensuring clean power for sensitive sensor analog front-ends.
Audio Codec Power Supply
The 50dB PSRR at 10kHz reduces high-frequency interference, providing a quiet supply rail for audio codecs and DACs in media players.
Industrial Control Modules
The 5-DSBGA package (1.41x1.08mm) fits space-constrained PLC I/O modules, delivering regulated 3.0V for logic and interface circuits.
Wearable Health Monitors
Low quiescent current (150µA) and small footprint support continuous operation in fitness trackers and medical patches where battery life is critical.
Automotive Interior Lighting
Stable 3.0V output with 150mA capability drives LED indicators and interior lighting controllers, maintaining consistent brightness across temperature variations.
- Q: What is the output voltage of the LP3995ITL-3.0/NOPB?
- A: The fixed output voltage is 3.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is 3V to 6V (based on 3V input spec).
- Q: What is the dropout voltage?
- A: Dropout voltage is typically 0.1V at 150mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 150µA.
- Q: What package is available?
- A: It comes in a 5-DSBGA (1.41x1.08) package.
