Texas Instruments LP3995ITLX-1.5/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.57 | $0.57 |
| 15+ | $0.55 | $8.25 |
| 25+ | $0.54 | $13.50 |
| 50+ | $0.51 | $25.50 |
| 100+ | $0.45 | $45.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA (1.41x1.08) |

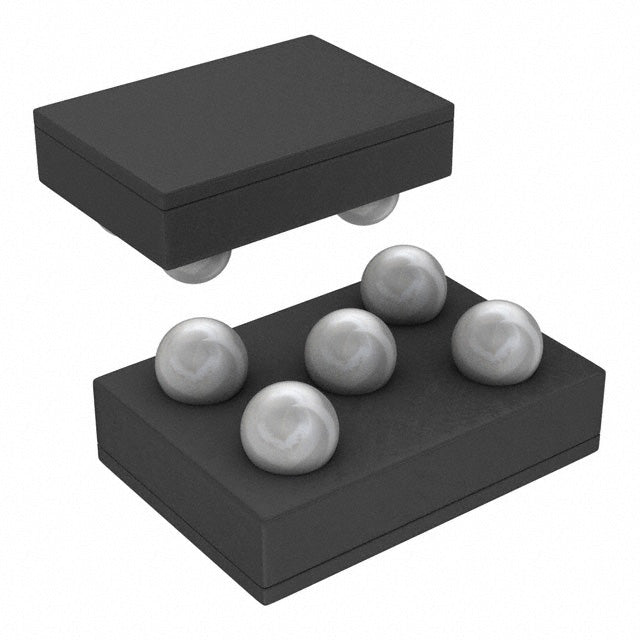

The LP3995ITLX-1.5/NOPB is a fixed 1.5V low dropout linear regulator from Texas Instruments, capable of 150mA output. It features an ultra-low dropout of 0.1V and a compact 5-DSBGA package (1.41x1.08mm), ideal for space-constrained applications. With 60dB PSRR at 1kHz, it ensures clean power for sensitive digital and RF circuits.
- Ultra-Low Dropout: 0.1V at 150mA maximizes headroom in low-voltage systems.
- Miniature Package: 5-DSBGA (1.41x1.08mm) is ideal for compact portable devices.
- Good PSRR: 60dB at 1kHz reduces noise coupling from input supply.
- Fixed 1.5V Output: Simplifies design for low-voltage digital cores.
FPGA Core Power
The 1.5V output and 0.1V dropout make it ideal for powering low-voltage FPGA cores from a 1.8V rail.
Mobile Phone RF Transceivers
With 60dB PSRR at 1kHz, it provides clean 1.5V power for RF transceivers, reducing spurious emissions.
Digital Signal Processors
Supplies stable 1.5V to DSP I/O and core logic, ensuring reliable operation in audio and video processing.
Ultra-Compact IoT Modules
The tiny 1.41x1.08mm DSBGA package fits into the smallest wireless sensor nodes and smart tags.
Portable Gaming Consoles
Delivers efficient 1.5V power for low-power microcontrollers and memory in handheld gaming devices.
Battery Management ICs
Provides a precise 1.5V reference rail for analog front-ends in battery monitoring systems.
- Q: What is the output voltage of the LP3995ITLX-1.5/NOPB?
- A: It provides a fixed 1.5V output.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.1V at 150mA.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What package is available?
- A: It comes in a 5-DSBGA package measuring 1.41x1.08mm.
