Texas Instruments LP3995ITLX-1.9/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.57 | $0.57 |
| 15+ | $0.55 | $8.25 |
| 25+ | $0.54 | $13.50 |
| 50+ | $0.51 | $25.50 |
| 100+ | $0.45 | $45.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

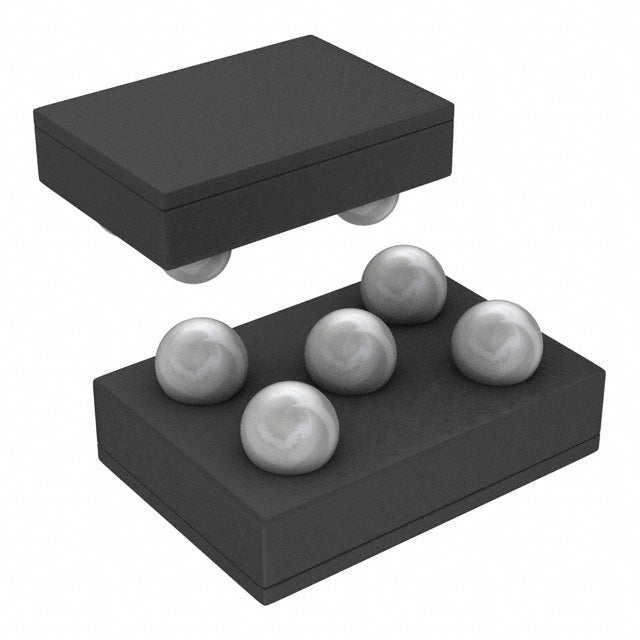

| Package / Case | 5-WFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA (1.41x1.08) |
The LP3995ITLX-1.9/NOPB is a fixed 1.9V low dropout linear regulator from Texas Instruments, delivering 150mA. It features an ultra-low dropout of 0.1V and comes in a compact 5-DSBGA package (1.41x1.08mm). With 60dB PSRR at 1kHz, it provides clean, stable power for memory, processors, and portable devices.
- Ultra-Low Dropout: 0.1V at 150mA supports operation from very low input voltages.
- Compact DSBGA: 1.41x1.08mm package fits in the smallest designs.
- Stable 1.9V Output: Ideal for DDR termination and I/O rails.
- Good Noise Rejection: 60dB PSRR at 1kHz ensures clean power for sensitive circuits.
DDR Memory Termination
The 1.9V output is suitable for DDR3/DDR4 VTT termination, providing stable power for memory modules.
Application Processors
Powers 1.9V I/O rails of mobile application processors, ensuring reliable data transfer between SoC and peripherals.
Wireless Charging Controllers
Provides clean 1.9V supply for control logic in wireless power receivers, reducing interference.
Portable Test Equipment
Ultra-low dropout enables efficient regulation from a 2.0V source, extending battery life in handheld multimeters.
Digital Cameras
Supplies stable 1.9V to image sensor digital cores, improving image processing accuracy.
Smart Watches
The tiny DSBGA package and low dropout make it ideal for powering 1.9V logic in smart wearables.
- Q: What is the output voltage of the LP3995ITLX-1.9/NOPB?
- A: It provides a fixed 1.9V output.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.1V at 150mA.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What package is available?
- A: It comes in a 5-DSBGA package measuring 1.41x1.08mm.
