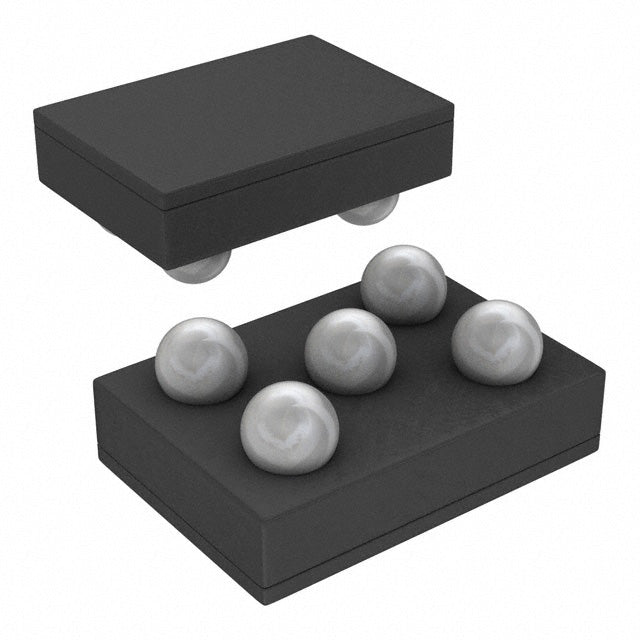

Texas Instruments LP3995ITLX-3.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.57 | $0.57 |
| 15+ | $0.55 | $8.25 |
| 25+ | $0.54 | $13.50 |
| 50+ | $0.51 | $25.50 |
| 100+ | $0.45 | $45.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 200 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, DSBGA |
| Supplier Device Package | 5-DSBGA (1.41x1.08) |
| ROHS |  |
The LP3995ITLX-3.0/NOPB from Texas Instruments is a low dropout linear regulator offering a fixed 3.0V output. It is designed for ultra-compact, low-power applications, delivering up to 150mA. With an ultra-low dropout voltage of 0.1V at full load and a quiescent current of only 150 µA, it is highly efficient. The 5-DSBGA package is ideal for space-constrained designs.
- Ultra-Small Footprint: 5-DSBGA package (1.41x1.08 mm) is ideal for miniaturized electronics.
- Ultra-Low Dropout: 0.1V at 150mA maximizes efficiency in battery-powered systems.
- Low Quiescent Current: 150 µA helps prolong battery life.
- Stable 3.0V Output: Provides a precise and stable supply for various ICs.
Compact IoT Devices
Ideal for smart sensors and connected devices where the tiny DSBGA package and low power consumption are critical.
Portable Instrumentation
Provides a stable 3.0V rail for handheld multimeters and other portable test equipment.
Wireless Headsets
Powers Bluetooth audio SoCs and noise-canceling DSPs, ensuring clean, stable operation.
Smart Cards and Readers
Supplies a regulated 3.0V supply for contactless smart card interfaces.
Battery Management ICs
Provides a precise 3.0V reference for fuel gauge and battery monitoring circuits.
- Q: What is the output voltage of the LP3995ITLX-3.0/NOPB?
- A: The fixed output voltage is 3.0V.
- Q: What is the maximum output current?
- A: It can provide up to 150mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.1V at a 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 150 µA.
- Q: What package is available?
- A: It is available in a 5-DSBGA package (1.41x1.08 mm).
