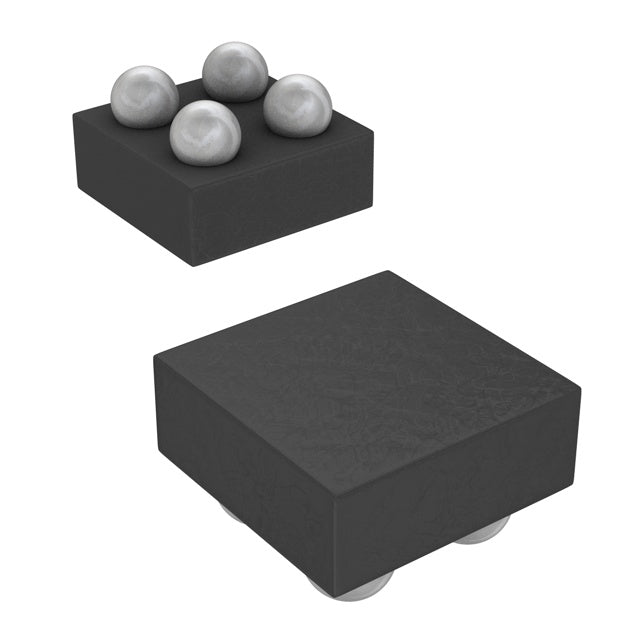

Texas Instruments LP5900TLX-2.85/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.60 | $0.60 |
| 15+ | $0.58 | $8.70 |
| 25+ | $0.57 | $14.25 |
| 50+ | $0.54 | $27.00 |
| 100+ | $0.47 | $47.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | 230 µA |
| PSRR | 85dB ~ 40dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-WFBGA, DSBGA |
| Supplier Device Package | 4-DSBGA (1x1) |
| ROHS |  |
The LP5900TLX-2.85/NOPB from Texas Instruments is a fixed 2.85V LDO regulator delivering 150mA. It offers excellent PSRR of 85dB at 100Hz and a low dropout of 0.15V at full load. The 4-DSBGA (1x1mm) package is ideal for compact designs. With 50 µA quiescent current, it's well-suited for battery-powered precision analog and RF applications requiring a clean, stable supply.
- Superior Noise Performance: 85dB PSRR at 100Hz ensures clean power for sensitive analog loads.
- Very Low Dropout: 0.15V at 150mA maximizes battery utilization.
- Minimal Footprint: 1x1mm DSBGA package saves critical board space.
- Stable Output: Fixed 2.85V rail is ideal for RF and sensor applications.
Precision Analog Circuits
The 85dB PSRR at 100Hz provides an exceptionally clean 2.85V rail for op-amps and ADCs, minimizing supply-induced errors in measurement equipment.
Wireless Modules
Ideal for powering RF transceivers that need a stable 2.85V supply; the low dropout ensures operation from a 3.0V battery until end-of-life.
Portable Audio Players
The low noise characteristics improve audio DAC performance, delivering clearer sound with less background hiss.
Battery-Powered Instruments
With 50 µA quiescent current and 150mA capability, it balances standby efficiency with active load requirements for handheld multimeters.
Camera Modules
Provides a stable 2.85V rail for image sensors, reducing vertical banding noise in low-light photography.
Medical Sensors
The tiny 1x1mm DSBGA package fits into catheter and endoscope designs where space is extremely limited.
- Q: What is the output voltage?
- A: The LP5900TLX-2.85 provides a fixed 2.85V output.
- Q: What is the maximum current?
- A: It can supply up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.85V to 5.5V (typical).
- Q: What is the dropout voltage?
- A: Dropout is a low 0.15V at 150mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 50 µA.
- Q: What package is used?
- A: It comes in a 4-DSBGA (1x1mm) wafer-level package.
