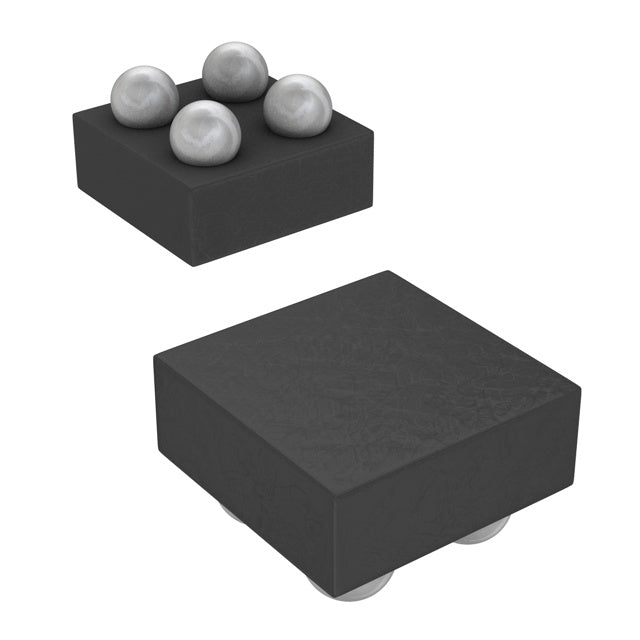

Texas Instruments LP5900TLX-3.0/NOPB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.60 | $0.60 |
| 15+ | $0.58 | $8.70 |
| 25+ | $0.57 | $14.25 |
| 50+ | $0.54 | $27.00 |
| 100+ | $0.47 | $47.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | 230 µA |
| PSRR | 85dB ~ 40dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-WFBGA, DSBGA |
| Supplier Device Package | 4-DSBGA (1x1) |
| ROHS |  |
The Texas Instruments LP5900TLX-3.0/NOPB is a high-performance low-dropout linear regulator delivering a fixed 3.0V output at up to 150mA. Its ultra-low 50µA quiescent current and excellent 85dB PSRR make it ideal for noise-sensitive, battery-powered applications. The compact 4-DSBGA package enables space-constrained designs without compromising stability or efficiency.
- Extended Battery Life: 50µA quiescent current minimizes standby drain in portable devices.
- Clean Power Delivery: 85dB PSRR at 100Hz filters supply noise for sensitive analog circuits.
- Space-Saving Design: 1x1mm DSBGA package fits ultra-compact PCBs.
- Low Dropout: 150mV dropout at full load maximizes usable battery voltage range.
Battery-Powered Wearables
The ultra-low 50µA quiescent current and 150mA output make it perfect for fitness trackers and smartwatches, extending battery life during standby.
Precision Sensor Reference
With 85dB PSRR at 100Hz, it provides clean, stable 3.0V rails for analog sensors, reducing noise-induced measurement errors.
Bluetooth Low Energy Modules
The 150mA capacity comfortably powers BLE SoCs during transmit bursts while maintaining tight voltage regulation.
Portable Medical Devices
Low dropout of 150mV ensures consistent 3.0V output even as batteries discharge, critical for glucose monitors and pulse oximeters.
IoT Edge Nodes
The tiny 1x1mm DSBGA package fits space-constrained designs, while low Iq supports long-life coin-cell operation.
Audio Codec Power
High PSRR across 100Hz-100kHz (85dB to 40dB) minimizes supply noise in portable audio codecs, improving signal-to-noise ratio.
- Q: What is the output voltage of the LP5900TLX-3.0/NOPB?
- A: The fixed output voltage is 3.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is 2.5V to 5.5V (based on 3V input spec).
- Q: What is the dropout voltage?
- A: The dropout voltage is 150mV at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is only 50µA, ideal for battery-powered devices.
- Q: What package is available?
- A: It comes in a 4-DSBGA (1x1mm) package.
