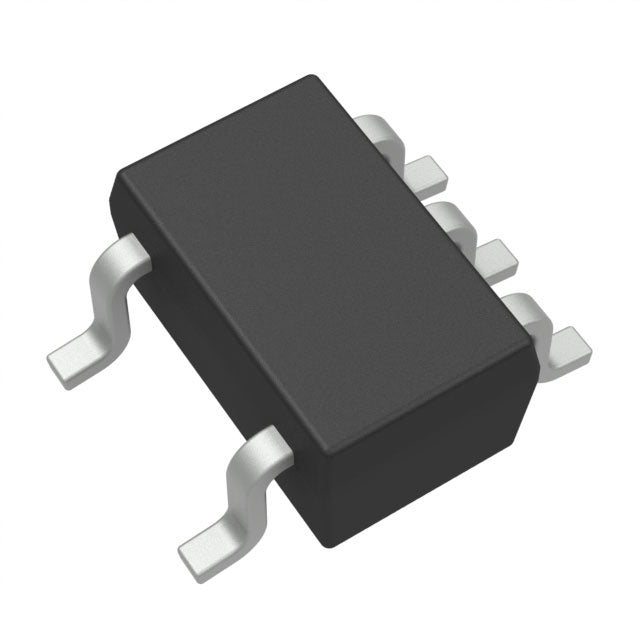

Texas Instruments LP5951MGX-2.5/NOPB
Regular price
$0.71
Regular price
$0.75
Sale price
$0.71
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.71 | $0.71 |
| 15+ | $0.69 | $10.35 |
| 25+ | $0.68 | $17.00 |
| 50+ | $0.64 | $32.00 |
| 100+ | $0.56 | $56.00 |
| N+ | $0.11 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | 70 µA |
| PSRR | 60dB ~ 50dB (100Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| ROHS |  |
The LP5951MGX-2.5/NOPB from Texas Instruments is a fixed 2.5V LDO providing 150mA. With a dropout of 0.35V and 55 µA quiescent current, it balances performance and power efficiency. The SC-70-5 package is compact and widely used, while 60dB PSRR at 100Hz ensures stable operation in mixed-signal environments.
- Compact SC-70-5: Small package for portable designs.
- Low Quiescent Current: 55 µA for battery-friendly operation.
- Reasonable Dropout: 0.35V at 150mA.
- Good Noise Rejection: 60dB at 100Hz for analog stability.
Portable Consumer Electronics
The SC-70-5 package is small enough for smartphones, tablets, and digital cameras.
Battery-Operated Sensors
55 µA quiescent current helps extend battery life in environmental and industrial sensors.
Mixed-Signal Circuits
60dB PSRR at 100Hz reduces digital noise coupling into analog sections.
Bluetooth Modules
Stable 2.5V rail for Bluetooth SoCs, ensuring consistent wireless performance.
Portable Test Equipment
Reliable power for multimeters and handheld scopes.
Low-Power Microcontrollers
Clean supply for MCUs in always-on applications.
- Q: What is the output voltage?
- A: Fixed 2.5V output.
- Q: What is the maximum current?
- A: 150mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: 0.35V at 150mA.
- Q: What is the quiescent current?
- A: 55 µA.
- Q: What package is available?
- A: SC-70-5.
Base Product Number ：
LP5951MGX-2.5
LP5951MGX-2.5/NOPB.pdf
